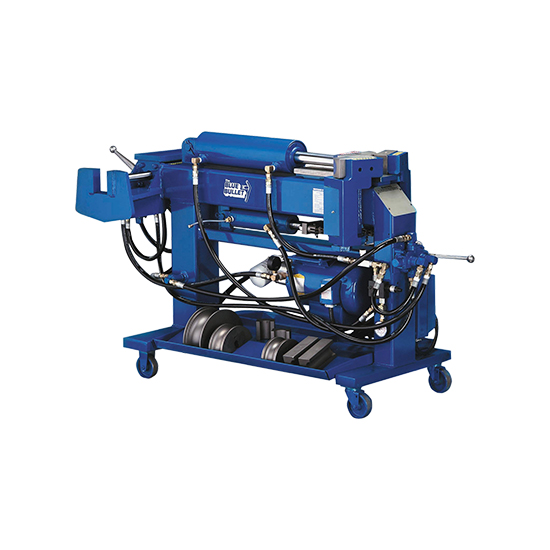

BendPak 5115150 Blue-Bullet Manual Tube Bending Machine
$11,995.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBendPak 5115150 Details
BendPak 5115150 Details
Meet the heavy-duty BendPak “Blue-Bullet” exhaust pipe bender. It takes off like a shot and helps you reach your production target every time. Includes a die package and a dual-function end-finishing unit for precision OE expansions and flares.
With its superior performance and simple operation, the Blue Bullet BB-1 and BB-2 exhaust pipe benders will hold a special place in your shop. We took our standard bender and equipped it with a knee valve and degree plate combination for a straightforward, rugged design that will never let you down. The knee operated valve gives you precise control and hands-free bending capabilities. Simply push the lever to the left to advance the bending die and then to the right to retract it. Heavy-duty cast iron construction guarantees that the valve will stand up to years of heavy use.
Features
Overview
Bending
Hydraulics
Die Pack
Dimensions
Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.
Due to the shipping weight and dimensions of this item, it is required that it be shipped to a business address that will have either a receiving dock or fork lift at the delivery destination to allow for the item to be unloaded from the truck/trailer at the time of delivery.
Charts
Specs
- 2 separate end-finishing units at rear for all necessary flaring and expanding
- Knee control and depth-of-bend degree plate for manual bending operations
- BB-1 Tooling Package included
- Comes complete with quick release bending and finishing dies
- Includes high-speed clampless swager and internal expander
- Easy-to-use drop-in collar makes swaging operations quick and efficient
- Twist-lock tooling
- Integrated power-relief control valve
- Pass-through cylinder stem passes completely through the primary frame
- Rigid 6" x 6" x 3/8" welded-steel tube frame
- Commercial-grade hydraulic cylinders
- All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
- Quick-release bending dies for reduced set-up times
- Bending heads precision grounded to within .002"
- Enclosed controls keep your bending area clutter-free
- 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
- Standard grease fittings allow for simple lubrication
- NEMA-rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
- Pressure gauges let you know exactly what the system pressures are at all times
- Industrial grade casters help you easily move the bender around your shop
- Adjustable pressure valve located right up front
- One-piece barrel ensures that the bending gates stay perfectly aligned with the ram
- Heat-treated tooling for greater service life
- Convenient tool trays keep your tooling organized
- Strong, 5 HP Baldor energy efficient motor delivers maximum performance
- Direct-drive, high-speed, 4 gpm pump
- Single enclosed bottom cylinder applies pressure evenly to the back gates and, because it is hidden, does not interfere with the tubing
- Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
- Canister oil filter in the hydraulic system keeps the oil nice and clean
- Oil sight-gauges allow you to visually inspect oil levels
- Over-sized 1/2" high-pressure hose provides better speed and cooling
- Open-sided swager box allows for easier access and reduces the chance of "crashing" tools and damaging the cylinder
- 180° bending die available
Warranty Information
Click for details
Warranty Information
Click for details
BendPak Limited Warranty (PDF)
BendPak 5115150 Specifications
BendPak 5115150 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 5115150 |
| Brand | BendPak |
| GENERAL | |
| GTIN Code | 00849672015239 |
| Sold in Quantity | Each |
