Product Summary

Rear Position, Vented Rotor Type, Powder Coated, Black

  • Modern Single-Piston Caliper w/Integral Park Brake
  • Red Powder Coated Finish
  • Slot, Dimpled, Zinc Plated Rotor
  • Stainless Braided Brake Hoses
  • Uses Common FMSI D0627 Brake Pad
See more details

Key Specs

MFG. Part #4302517R
PositionRear
Wheel Bolt Pattern (in.)5x4.75 in.
Wheel Bolt Pattern (mm)5x120.65 mm
Rotor TypeVented
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Baer Brakes 4302517R Details

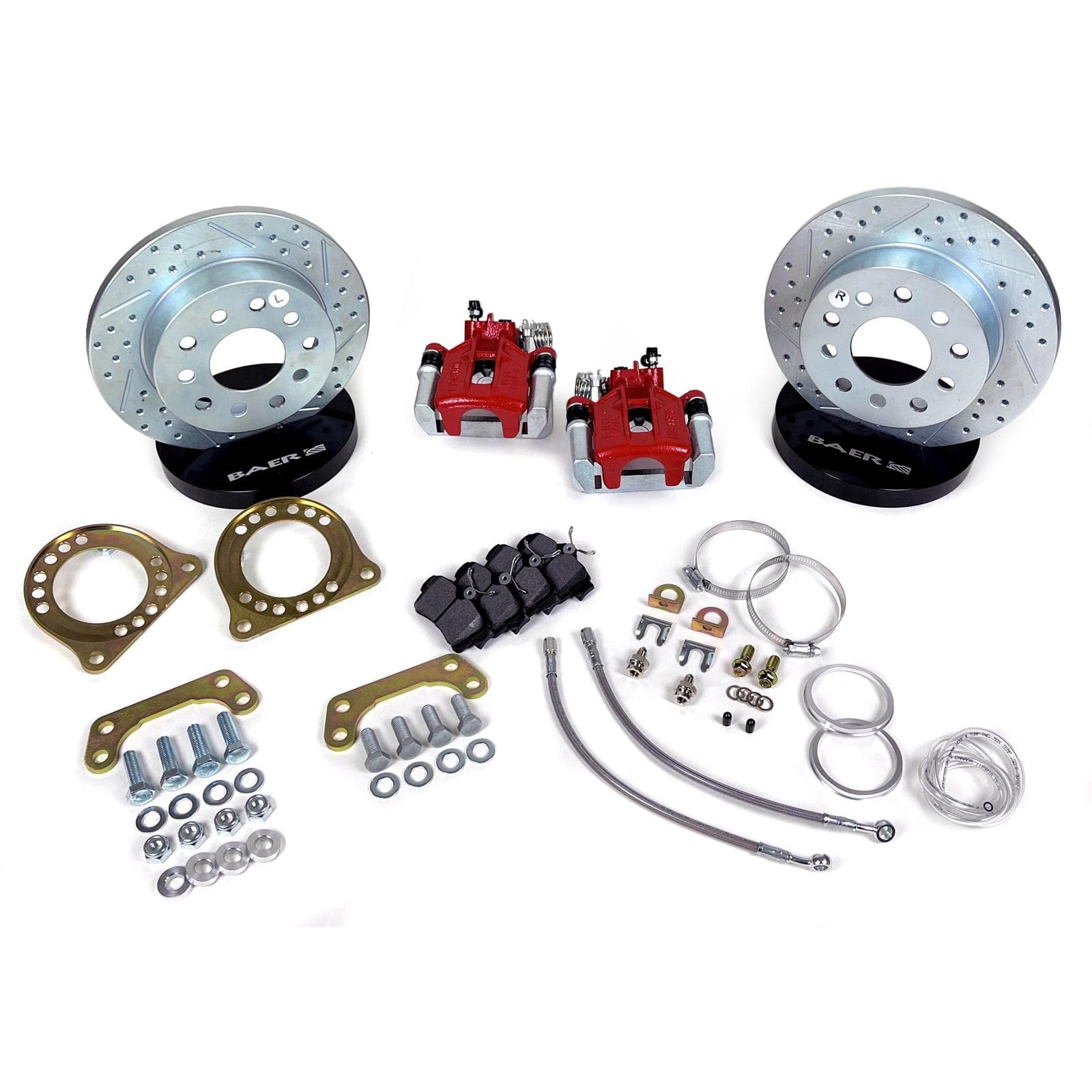

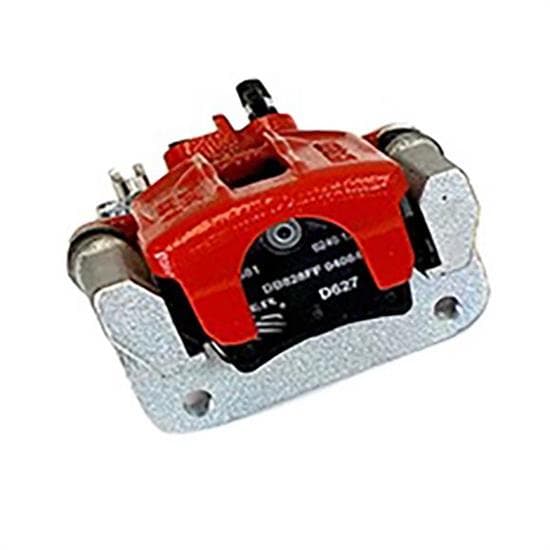

This Baer Classic system features a single piston, integral park brake caliper mounted to a 10.50", 1-piece slot, dimpled and zinc plated rotor. The caliper comes with a red powder coated finish, includes dust/weather seal and uses the popular D627 pad type. The system includes calipers, rotors, brackets, hardware, stainless braided brake hoses and fittings. The Baer Classic system is a cost effective, full feature drum to disc conversions and fits most 14" or larger wheels.

  • Modern Single-Piston Caliper w/Integral Park Brake
  • Red Powder Coated Finish
  • Slot, Dimpled, Zinc Plated Rotor
  • Stainless Braided Brake Hoses
  • Uses Common FMSI D0627 Brake Pad
  • Modern Brakes for Small Wheels at an Economical Price
  • ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.**

    ** Includes park brake, cables sold separately

    Baer Brakes 10.5" Classic Series Rear Brake Kit Fits GM 10/12 Bolt (BIH/BOA) Small Car Rear Ends (Non-Staggered Shock Applicatons)

    Formed as Baer, Inc. (Baer Brake Systems) in 1994, founder Hal Baer established the company from a racing background in the Corvette and World Challenge Series by identifying a gap in offerings for his own race cars. By using popular (at the time) PBR and Alcon calipers, he adapted and built complete systems (hose and fittings, etc.) for many popular domestic muscle cars.

    Today, in their 70,000sq ft facility in Phoenix, Arizona, Baer Brakes continues to be a leader in the performance brake industry by focusing on engineering design and innovative technology to deliver the most complete and detail-oriented brake solutions to their customers.

    Through their early relationships with high-profile OE prototype manufacturers and builders (such as Chrysler, General Motors, Roush, Shelby, Foose, Mark Steilow, Big Red, etc.), Baer became known as the premier domestic brake company which would later translate to being the face of the 'Pro-Touring' market segment. In the early 2000’s, Baer produced their first in-house caliper, the forged Monoblock 6S, which was soon followed by the extruded and machined 2-pc, 6P caliper. By doing this, it greatly reduced Baer's outside caliper dependencies and allowed them to focus even more on developing and manufacturing other components as well and transition from a systems integrator to full brake system builder. Baer Brakes was the official brake of the Overhaulin' TV show and in 2007, Baer was recognized by Hot Rod Magazine as "One of Twenty Companies that Changed the World and today they remain the brake system of choice for many top builders such as Roadster Shop, Ring Brothers, Goolsby Customs, etc., just to name a few. Bear’s success caught the attention of Holley Performance Brands and in 2021, Baer was acquired by them, solidifying Baer’s continued growth as an innovative leader in their space.

    Baer Brakes 4302517R Specifications

    KEY SPECS
    MFG. Part #4302517R
    BrandBaer Brakes
    PositionRear
    Wheel Bolt Pattern (in.)5x4.75 in.
    Wheel Bolt Pattern (mm)5x120.65 mm
    Rotor TypeVented
    Caliper FinishPowder Coated
    ColorBlack
    Parking Brake ProvisionYes
    Minimum Recommended Wheel Diameter14 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StyleDrilled & Slotted
    Front Rotor IncludedNo
    Front Caliper IncludedNo
    Rear Caliper IncludedYes
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Brake Hoses IncludedYes
    Rear Rotor IncludedYes
    Bolt Pattern5 on 4.5" | 4.75"
    GENERAL
    Sold in QuantityKit
    NotesDoes not fit rear axles with staggered shock mounts.
    GTIN Code844165054917
    Brake Pad MaterialCeramic
    Axle Housing Flange StyleSmall GM (3.100 in. x 2.41 in.)
    Brake Pads IncludedYes
    Differential Case Design TypeGM 7.5/7.6/8.2/8.2BOP/8.5/8.6/8.875 in. (12-bolt), passenger car
    Parking Brake StyleIntegral Caliper
    Rear Caliper ColorRed
    Rear Caliper MaterialCast Iron
    Rear Caliper Piston QuantityOne
    Rear Rotor ConstructionSolid
    Rear Rotor Diameter10.5"
    Rear Rotor StyleDrilled and Slotted
    Rear Rotor Thickness0.5"

    Fitment
