BTR TRA-7-BLK-P105-2I Trinity Intake, LS7 Dual Injector, Black
BTR TRA-7-BLK-P105-2I Trinity Intake, LS7 Dual Injector, Black
BTR

|

#36984152

BTR TRA-7-BLK-P105-2I Trinity Intake, LS7 Dual Injector, Black

  • Trinity Intake Manifold
  • For LS7
  • Black
See More

$979.99

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

EFI Fuel System Type, Multi-port Injection Style, Black

  • Trinity Intake Manifold
  • For LS7
  • Black
See more details

Key Specs

MFG. Part #TRA-7-BLK-P105-2I
BrandBTR
Injection StyleMulti-port
RPM Range6000-8500
Material TypeAluminum
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

BTR TRA-7-BLK-P105-2I Details

  • Trinity Intake Manifold
  • For LS7
  • Black

The Trinity Series intake manifold is BTR's latest offering in high-quality cast aluminum intake manifolds. Designed, cast, and machined in the USA, it’s one of the few All-American aluminum intakes on the market!

The Trinity uses o-ring sealing between the runners and plenum & cylinder heads for a mess-free, leak-free seal with maximum serviceability, with downward-tilted 102mm and straight 105mm opening plenum offerings, as well as burst plate options for max-effort boosted applications on the P105.  Over the years, we’ve been developing, tuning, and revising plenum and runner combinations for peak performance. The original short-runner, 3-piece design offers the ultimate in application flexibility and is similar in concept to billet intakes costing thousands more. The optimum operating range is 6000-8500 rpm naturally aspirated (N/A) and 3000-6500 rpm boosted.

BTR also offers many runner combinations for most GM LS & LT, Mopar Gen III HEMI, and Ford Godzilla applications. Mid-length (Average 6.5-inch runner – Ideal for 4500-7400 RPM N/A) and long “truck” length (Average 8-inch runner – Ideal for 3000-6000 RPM N/A) versions are available for folks looking for a different powerband. CNC ported runners are available for high-boost or larger-displacement/high-RPM engines. We cover multi-injector options on several runner designs, as well as port-injection bosses on all direct-injected-style and Godzilla intakes, which can be used for more injectors, direct-port nitrous, sensor mounting, or creative charge cooling!

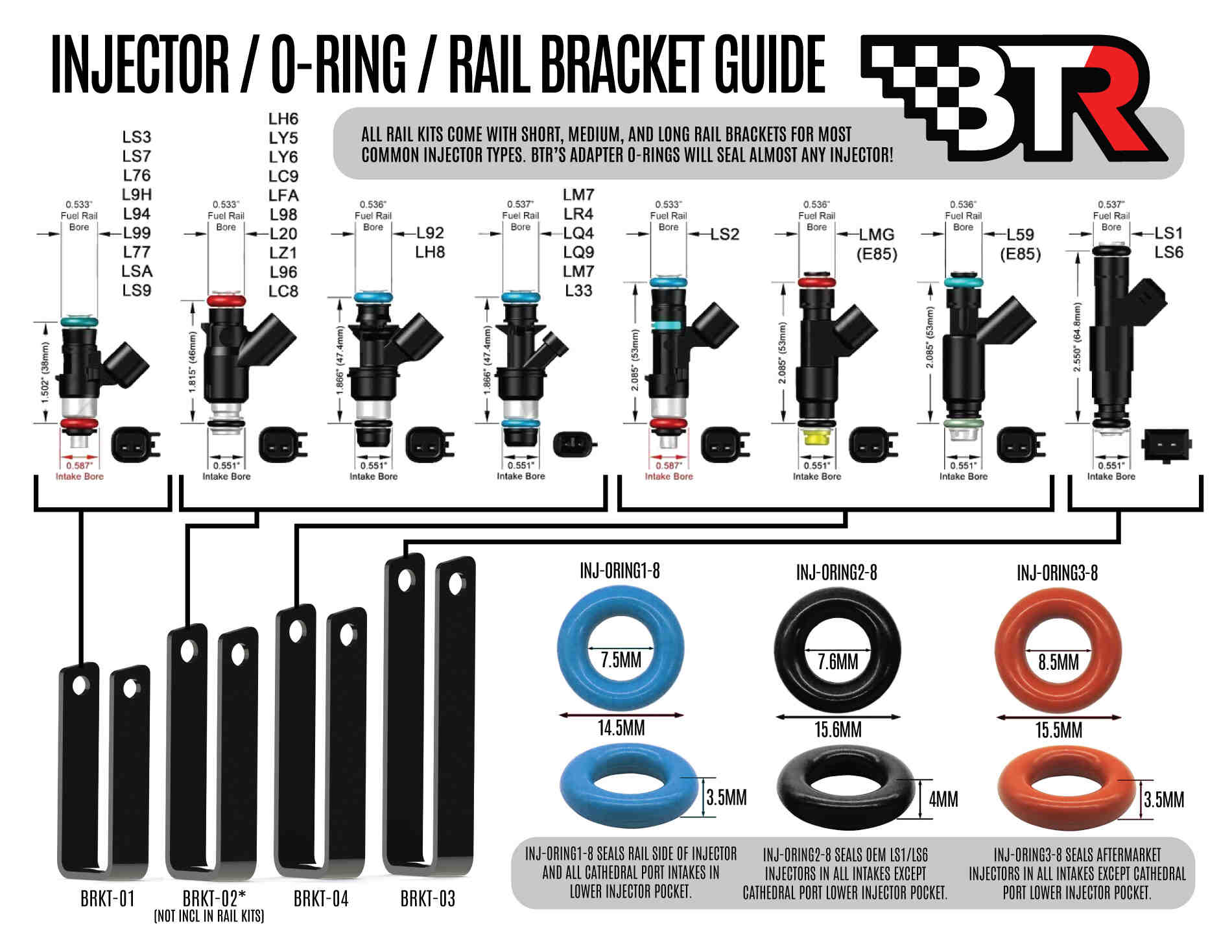

See the fuel injector guide in the gallery for the most popular injector, injector o-ring, and bracket combinations.

Due to batch-coloring issues, a slight color difference from runner to plenum is possible on all natural-finish three-piece intake manifolds.

BTR TRA-7-BLK-P105-2I Specifications

KEY SPECS
MFG. Part #TRA-7-BLK-P105-2I
BrandBTR
Injection StyleMulti-port
RPM Range6000-8500
Material TypeAluminum
GENERAL
Fuel System TypeEFI
ColorBlack
EGRNo
Throttle Body Bore Size105mm
Fuel Rails IncludedNo

Questions & Answers

Be the first to ask a question.

Fitment

  • GM LM4

  • GM LS6

  • GM LS2

  • GM LSA

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM L9H

  • GM L94

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM L9H

  • GM L94

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM L9H

  • GM L76

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LY5

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LS1

  • GM LS3

  • GM LS1

  • GM LS1

  • GM LS6

  • GM LS2

  • GM LS3

  • GM LS4

  • GM LS4

  • 4.8 Chevy LS V8

  • GM LM7

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ9

  • GM LQ4

  • GM L98

  • GM LM7

  • GM LQ4

  • GM L98

  • GM LQ9

  • GM L98

  • GM LQ4

  • GM L98

  • GM LQ4

  • GM LQ4

  • GM L98

  • GM L98

  • GM LQ4

  • GM LQ4

  • GM L98

  • GM LZ1

  • GM LS3

  • GM LM4

  • GM L77

  • GM LMG

  • GM LY5

  • GM LM7

  • GM L59

  • GM LM7

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LC9

  • GM LMG

  • GM LMG

  • GM LY5

  • GM LQ4

  • GM L96

  • GM LMG

  • GM LY5

  • 4.8 Chevy LS V8

  • GM L59

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LMG

  • GM LY5

  • 6.2 Chevy LS V8

  • GM L9H

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM L9H

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM LMG

  • GM LY5

  • GM LH6

  • GM LS2

  • GM LM4

  • GM LM4

  • GM LM4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM L94

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM L94

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM L94

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM L94

  • GM LQ4

  • GM L20

  • GM L9H

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM L33

  • GM L59

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM L96

  • GM LQ4

  • GM LQ4

  • GM L96

  • GM LQ4

  • GM L96

  • GM L96

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • 4.8 Chevy LS V8

  • GM L20

  • GM L94

  • GM LM7

  • GM LY2

  • GM LZ1

  • GM L94

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM LM7

  • GM L59

  • GM LM7

  • GM LQ4

  • GM L96

  • GM LQ4

  • GM L96

  • GM LQ4

  • 6.2 Chevy LS V8

  • GM LH8

  • GM LH9

  • GM LH8

  • GM LH9

  • GM LS1

  • GM LS3

  • GM LS1

  • GM LS2
