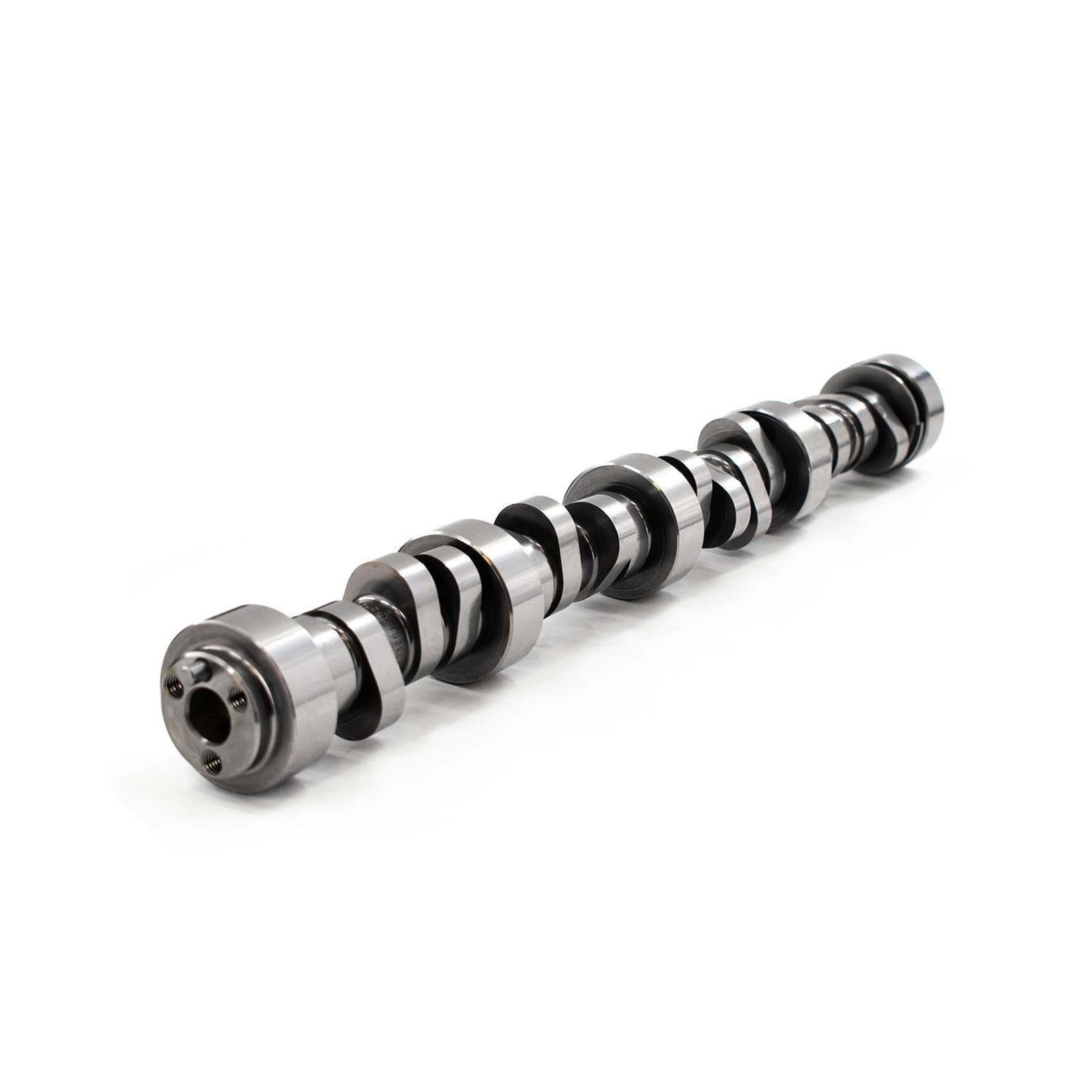

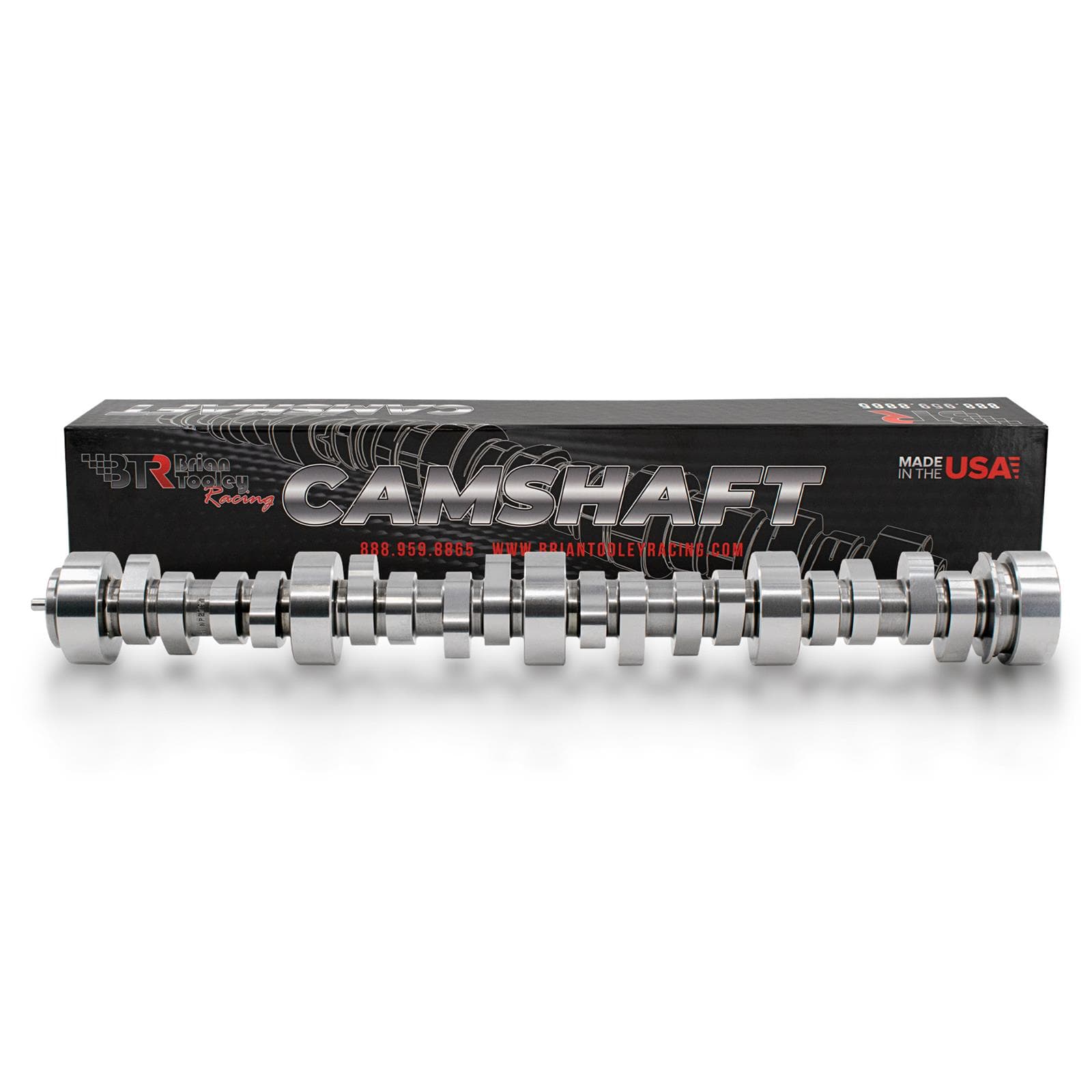

BTR BTR-LS1STAGE2 LS1/LS2 Stage 2 V2 Camshaft

New Product

BTR BTR-LS1STAGE2 LS1/LS2 Stage 2 V2 Camshaft
BTR

|

#36984094

BTR BTR-LS1STAGE2 LS1/LS2 Stage 2 V2 Camshaft

  • 221/24x
  • .624"/.636"
  • 112 LSA
See More

Level:

Stage 2

Stage 1Stage 4

$409.99

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Roller Camshaft Type, 112 ° Lobe Separation

  • 221/24x
  • .624"/.636"
  • 112 LSA
See more details

Key Specs

MFG. Part #BTR-LS1STAGE2
BrandBTR
Camshaft TypeHydraulic Roller
Intake Duration (.050" Lift)221
Lobe Separation112 °
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

BTR BTR-LS1STAGE2 Details

BTR LS1/LS2 Stage 2 Camshaft

  • 221/24x
  • .624"/.636"
  • 112 LSA

Developed and ground in-house using state of the art BTR designed lobes, the new LS1 Stage 2 V2 cam is the latest offering in the LS1/LS2 line up. We went back to the drawing board to find even more power and torque. This camshaft has a moderate idle for use in daily driving, yet makes significantly more midrange and top end power over Stage 1, with an over 16% horsepower gain at peak over the factory LS2 camshaft.

An aftermarket stall is recommended to help unlock this camshaft's full potential.

These new BTR lobe designs were Spintron and Engine Dyno tested to achieve the highest overall power curve while also maintaining strict valvetrain stability and durability standards.

Requires the use of our .660" Lift Platinum spring kit with titanium retainers and hardened pushrods.

BTR BTR-LS1STAGE2 Specifications

KEY SPECS
MFG. Part #BTR-LS1STAGE2
BrandBTR
Camshaft TypeHydraulic Roller
Intake Duration (.050" Lift)221
Lobe Separation112 °
GENERAL
Gear Attachment3-Bolt
Intake Valve Lift w/ Rocker Arm Ratio.624"
Exhaust Valve Lift w/ Rocker Arm Ratio.636"
Computer Controlled CompatibleYes
Lifters IncludedNo
Valve Springs RequiredYes

Fitment

  • GM LM4

  • GM LS6

  • GM LS2

  • GM LSA

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM L9H

  • GM L94

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM L9H

  • GM L94

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM L9H

  • GM L76

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LY5

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LS1

  • GM LS3

  • GM LS1

  • GM LS1

  • GM LS6

  • GM LS2

  • GM LS3

  • GM LS4

  • GM LS4

  • 4.8 Chevy LS V8

  • GM LM7

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ9

  • GM LQ4

  • GM L98

  • GM LM7

  • GM LQ4

  • GM L98

  • GM LQ9

  • GM L98

  • GM LQ4

  • GM L98

  • GM LQ4

  • GM LQ4

  • GM L98

  • GM L98

  • GM LQ4

  • GM LQ4

  • GM L98

  • GM LZ1

  • GM LS3

  • GM LM4

  • GM L77

  • GM LMG

  • GM LY5

  • GM LM7

  • GM L59

  • GM LM7

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LC9

  • GM LMG

  • GM LMG

  • GM LY5

  • GM LQ4

  • GM L96

  • GM LMG

  • GM LY5

  • 4.8 Chevy LS V8

  • GM L59

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LMG

  • GM LY5

  • 6.2 Chevy LS V8

  • GM L9H

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM L9H

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM LMG

  • GM LY5

  • GM LH6

  • GM LS2

  • GM LM4

  • GM LM4

  • GM LM4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM L94

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM L94

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM L94

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM L94

  • GM LQ4

  • GM L20

  • GM L9H

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM L33

  • GM L59

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM L96

  • GM LQ4

  • GM LQ4

  • GM L96

  • GM LQ4

  • GM L96

  • GM L96

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • 4.8 Chevy LS V8

  • GM L20

  • GM L94

  • GM LM7

  • GM LY2

  • GM LZ1

  • GM L94

  • GM LC9

  • GM LMG

  • GM LZ1

  • GM LM7

  • GM L59

  • GM LM7

  • GM LQ4

  • GM L96

  • GM LQ4

  • GM L96

  • GM LQ4

  • 6.2 Chevy LS V8

  • GM LH8

  • GM LH9

  • GM LH8

  • GM LH9

  • GM LS1

  • GM LS3

  • GM LS1

  • GM LS2
