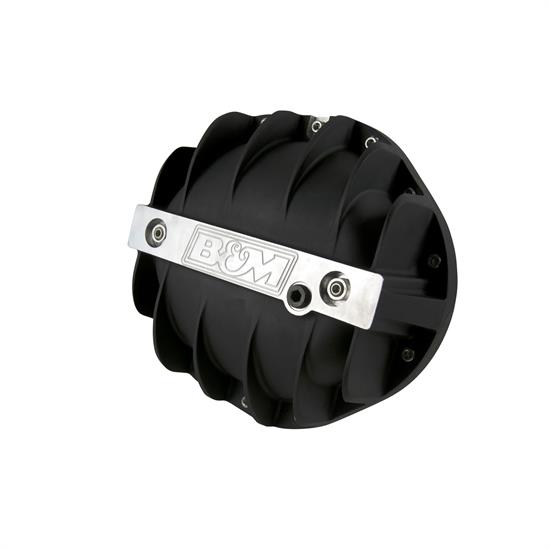

B&M 71505 Cast Aluminum Differential Cover for GM 9.5" - BLK
B&M 71505 Cast Aluminum Differential Cover for GM 9.5" - BLK

B&M 71505 Cast Aluminum Differential Cover for GM 9.5" - BLK

GM 9.5" 14-Bolt, 3.77" Overall Thickness, Aluminum, Anodized

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
B&M 71505 Cast Aluminum Differential Cover for GM 9.5" - BLK
B&M 71505 Cast Aluminum Differential Cover for GM 9.5" - BLK
Zoomed In Image
We estimate this item will ship on or before September 20th.
Part # 20071505
$225.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for B&M Transmission to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

GTIN Code:
019695715052
MFG. Part #:
71505
Overall Thickness:
3.77"
Material Type:
Aluminum
Finish:
Anodized
Bolt Count:
14
Bolt Hole Pattern:
GM 9.5
Drain Plug Included:
Yes
Filler Plug Included:
Yes
Gaskets Included:
No
Call Out Size:
3.3"
Carrier Main Cap Support:
Yes
Color:
Black

Info

B&M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of military grade (MIL-A-8625) black anodized A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions.

  • U.S. military grade specification (MIL-A-8625) black anodized A356.0-T6 aluminum construction
  • B&M Logo Engraved
  • Load bolts provide additional support to bearing caps
  • 0.5 quarts extra fluid capacity and cooling/strengthen ribs keeps temperature cooler

Installation Instructions (PDF)

Application

Designed to fit most vehicles with GM 9.5" 14 Bolt differential, however each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase & installation. Refer to ID guide and measurement diagram for specific dimensions.
Some parts are not legal for use in California or other states with similar laws/regulations
