B&M 70504 Cast Aluminum Differential Cover for GM 8.875" Truck

-7%

B&M 70504 Cast Aluminum Differential Cover for GM 8.875" Truck
B&M

|

#20070504

B&M 70504 Cast Aluminum Differential Cover for GM 8.875" Truck

$334.95

/each

Factory Shipped

$363.95

Save $29.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

GM 8.875 Inch 12-Bolt Truck, 3.62" Overall Thickness

    See more details

    Key Specs

    MFG. Part #70504
    BrandB&M
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    B&M 70504 Details

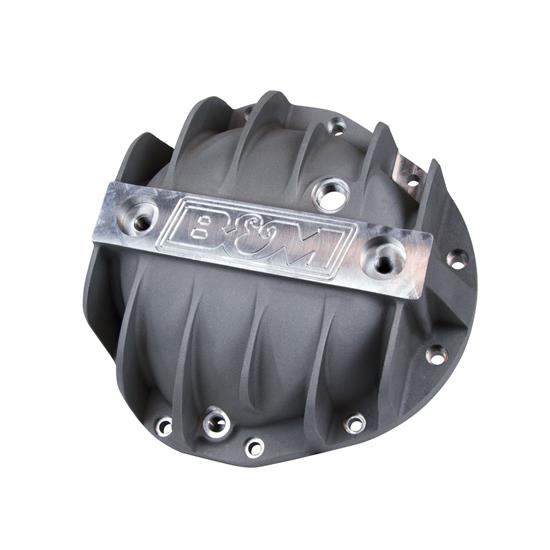

    B&M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions.

    • A356.0-T6 Aluminum Construction
    • B&M Logo Engraved
    • Load bolts provide additional support to bearing caps
    • 0.50 quarts extra fluid capacity and cooling/strengthen ribs keeps temperature cooler

    Application

    Designed to fit most vehicles with GM 8.875" 12 Bolt Truck differential, however each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase & installation. Refer to ID guide and measurement diagram for specific dimensions.

    Charts

    B&M 70504 Specifications

    KEY SPECS
    MFG. Part #70504
    BrandB&M
    GENERAL
    GTIN Code019695705046
    Overall Thickness3.62"
    Material TypeAluminum
    FinishRaw
    Bolt Count12
    Bolt Hole PatternGM 8.875 Truck
    Drain Plug IncludedYes
    Gaskets IncludedNo
    Call Out Size3.27"
    Carrier Main Cap SupportYes

    Questions & Answers

    1 Question • 1 Answer

    does this come with the bolts?

    by CAMIE

    • a year ago

    1 answer

    View Answer

    1 of 1 questions shown
