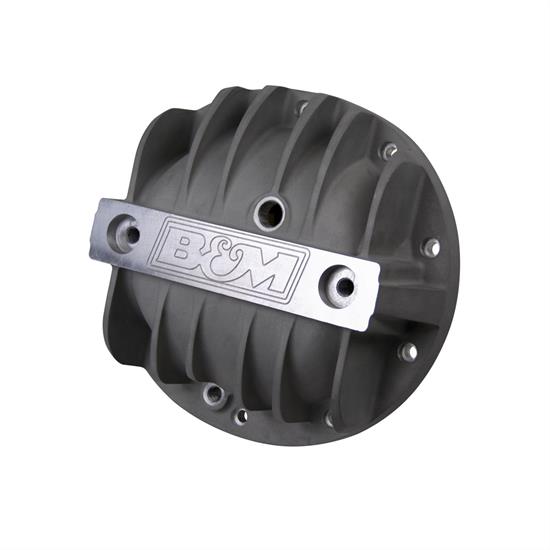

B&M 70502 Cast Alum Differential Cover for GM 8.2", 8.5", & 8.6"
B&M 70502 Cast Alum Differential Cover for GM 8.2", 8.5", & 8.6"
Factory Shipped
Ships FREE
B&M 70502 Cast Alum Differential Cover for GM 8.2", 8.5", & 8.6"
We estimate this item will ship on or before May 1st.
Part # 20070502
$185.99
each
Add to Cart
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Important Messages:
- This item ships directly from the manufacturer. It may take an additional 3 business days for B&M Transmission to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Details
GTIN Code:
019695705022
MFG. Part #:
70502
Overall Thickness:
3.43"
Material Type:
Aluminum
Finish:
Raw
Bolt Count:
10
Bolt Hole Pattern:
GM 8.2/8.5/8.6
Drain Plug Included:
Yes
Filler Plug Included:
Yes
Gaskets Included:
No
Call Out Size:
2.84"
Carrier Main Cap Support:
Yes
Rebates
$25, $50, or $75 Manufacturer Rebate Available! To receive your rebate you must purchase a qualifying Flowmaster, B&M, or Hurst product between April 1, 2018 and April 30, 20. See the manufacturer REBATE FORM for more details.
Info
B&M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions.
- A356.0-T6 Aluminum Construction
- B&M Logo Engraved
- Load bolts provide additional support to bearing caps
- 0.4 quarts extra fluid capacity and cooling/strengthen ribs keeps temperature cooler
Application
Designed to fit most vehicles with GM 8.2", 8.5"& 8.6" 10 Bolt differential, however each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase & installation. Refer to ID guide and measurement diagram for specific dimensions.
Some parts are not legal for use in California or other states with similar laws/regulations
