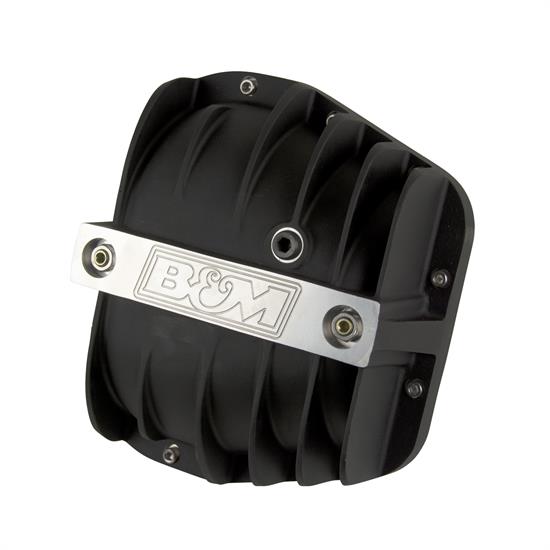

B&M 41298 Cast Aluminum Differential Cover, Ford 9.75 Inch, Black
B&M 41298 Cast Aluminum Differential Cover, Ford 9.75 Inch, Black
B&M

|

#20041298

B&M 41298 Cast Aluminum Differential Cover, Ford 9.75 Inch, Black

$425.95

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9.75 Inch, 3.84" Overall Thickness, Aluminum

    See more details

    Key Specs

    MFG. Part #41298
    BrandB&M
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    B&M 41298 Details

    B&M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of military grade (MIL-A-8625) black anodized A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions.

    • U.S. military grade specification (MIL-A-8625) black anodized A356.0-T6 aluminum construction
    • B&M Logo Engraved
    • Load bolts provide additional support to bearing caps
    • 0.5 quarts extra fluid capacity and cooling/strengthen ribs keeps temperature cooler

    Application

    Designed to fit most vehicles with Ford 9.75" differential, however each vehicle may have other interfering components and adequate clearance and fitment should be verified prior to purchase & installation. Refer to ID guide and measurement diagram for specific dimensions.

    Charts

    B&M 41298 Specifications

    KEY SPECS
    MFG. Part #41298
    BrandB&M
    GENERAL
    GTIN Code019695412982
    Overall Thickness3.84"
    Material TypeAluminum
    FinishAnodized
    Bolt Count12
    Bolt Hole PatternFord 9.75
    Drain Plug IncludedYes
    Filler Plug IncludedYes
    Gaskets IncludedNo
    Call Out Size3.28"
    Carrier Main Cap SupportYes
    ColorBlack
