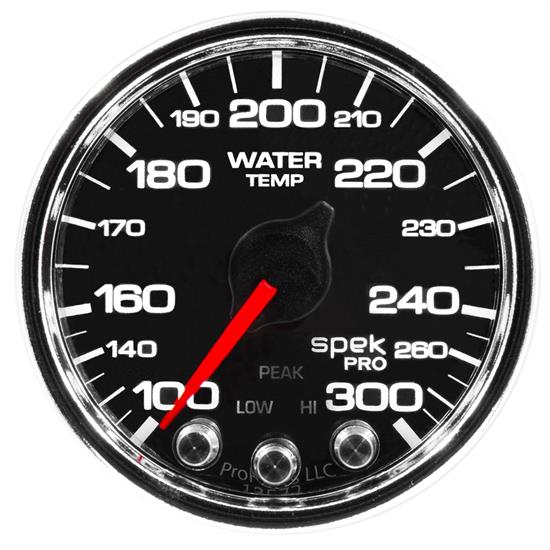

AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed

AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed

Universal Fit, 2-1/16" Gauge Diameter, Analog Gauge Series, Electric Gauge Style, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed
X
AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed
AutoMeter P34631 Spek-Pro Water Temp Gauge,2-1/16,100-300,Domed
Zoomed In Image
We estimate this item will ship on or before May 7th.
Part # 182P34631
$207.99
$209.95
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos
  • 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
  • Configurable "High" and "Low" warnings using three on-instrument-face buttons
  • Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
  • Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
  • Solid-state data acquisition grade sending units provide unmatched gauge accuracy and withstand the harshest environments.

Details

Gauge Diameter:
2-1/16"
Gauge Series:
Analog
Gauge Style:
Electric
Gauge Face Color:
Black
Gauge Range:
100-300 °F
Lighted:
Yes
Body Diameter:
2.05"
Bezel Finish:
Chrome
Bezel Style:
Spek Round Shoulder
Lighting Type:
LED
Includes Wire Harness:
Yes
Includes Mounting Bracket(s):
Yes
Lens Style:
Domed
Pointer Color:
Fluorescent Red
Includes Sensor Unit:
Yes
MFG. Part #:
P34631
GTIN Code:
046074153822

Info

Engines don’t like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. Auto Meter’s advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.

  • 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
  • Configurable "High" and "Low" warnings using three on-instrument-face buttons
  • Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
  • Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
  • Solid-state data acquisition grade sending units provide unmatched gauge accuracy and withstand the harshest environments.
  • Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation.
  • Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge.
  • Precision 280° brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution.

Notes

Ships with the following AutoMeter products:

Sending Unit(s):  P13125
Wire Harness:  P19370
Mounting Hardware:  P12467

Charts

Installation Instructions (PDF)

Installation Instructions (PDF)

Installation Instructions (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 15 business days for AutoMeter to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
