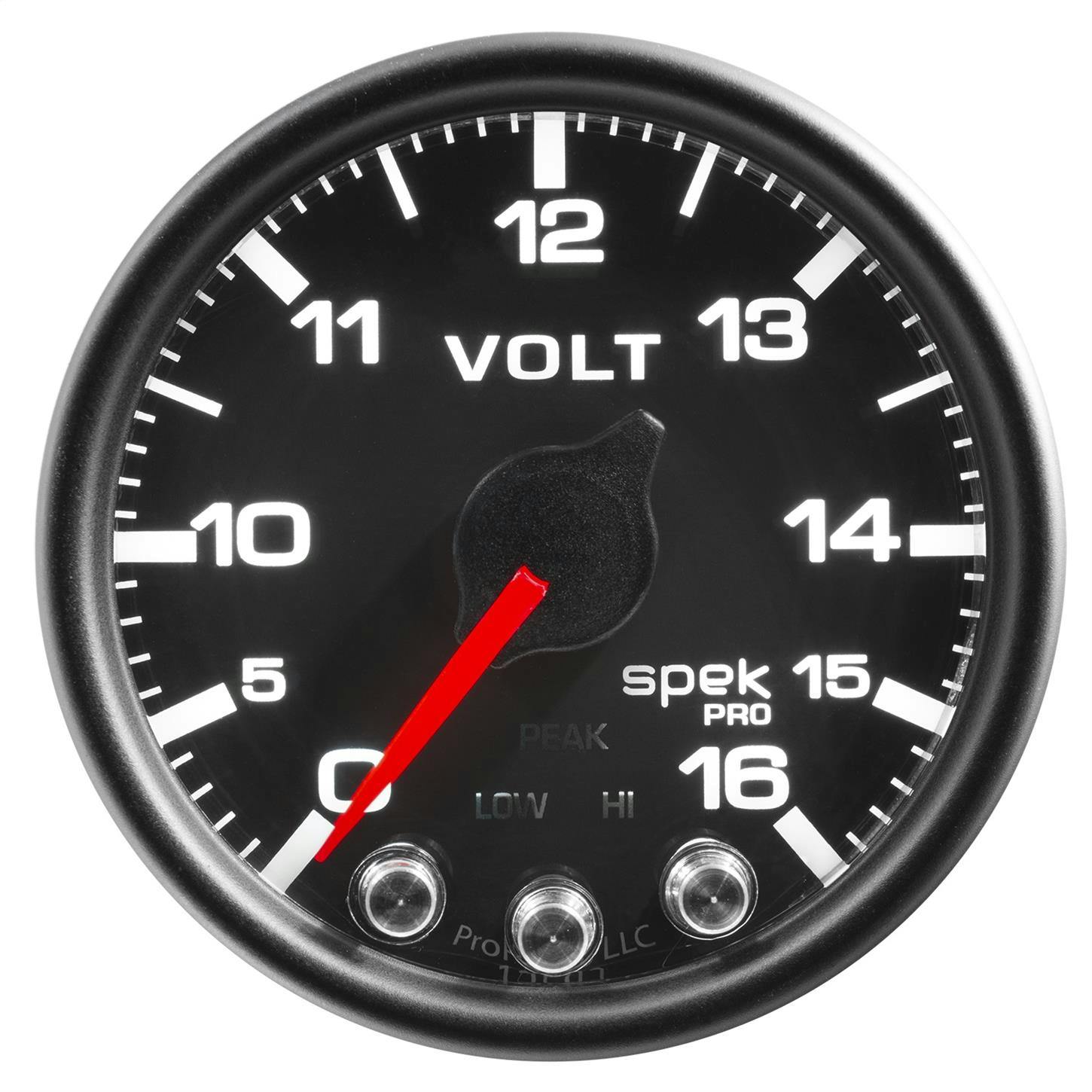

AutoMeter P34432 Volt Gauge, 2 1/16 Inch, 16V, Black/Black

#182P34432

AutoMeter P34432 Volt Gauge, 2 1/16 Inch, 16V, Black/Black

7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
Configurable "High" and "Low" warnings using three on-instrument-face buttons

$226.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2.36" Overall Diameter, Lighted, Black

7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
Configurable "High" and "Low" warnings using three on-instrument-face buttons
Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
Solid-state data acquisition grade sending units provide unmatched gauge accuracy and withstand the harshest environments.

See more details

Key Specs

MFG. Part #	P34432
Gauge Type	Electric
Lighted	Yes
Gauge Face Color	Black
Gauge Style	Analog

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AutoMeter P34432 Details

Keep tabs on the health and output of your vehicles electrical system safely and accurately with AutoMeter's ultra precise Digital Stepper Motor Voltmeter. With precise resolution and ultra smooth needle movement, this gauge operates anywhere from 0-16 volts on negative ground electrical systems. A direct plug in wiring harnesses included for ease of installation.

Feature Points

7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
Configurable "High" and "Low" warnings using three on-instrument-face buttons
Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
Solid-state data acquisition grade sending units provide unmatched gauge accuracy and withstand the harshest environments.
Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation.
Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge.
Precision 280Ã‚° brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution.
Domed Lens

Ships With

P12467

Guides & Documents

Volt Gauges Installation Instructions (182P34432)

CA Prop 65

AutoMeter P34432 Specifications

KEY SPECS
MFG. Part #	P34432
Brand	AutoMeter
Gauge Type	Electric
Lighted	Yes
Gauge Face Color	Black
Gauge Style	Analog
Gauge Diameter	2-1/16"

GENERAL
Overall Diameter	2.36"
Body Diameter	2.05"
Gauge Range	0-16 V
Gauge Sweep	Full Sweep
Liquid Filled	No
Shape	Round
Bezel Finish	Black
Sold in Quantity	Each
Bezel Style	Round Shoulder
Lighting Type	LED
Sending Unit Included	Yes
Sending Unit	Electrical
Includes Mounting Bracket(s)	Yes
Includes Wire Harness	Yes
GTIN Code	046074153617
Lens Style	Domed
Pointer Color	Red
Gauge Number Color	Multicolor
Memory Storage	No
Playback	No
