Product Summary

Universal Fit, 2-1/16" Gauge Diameter, Black

  • 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
  • Configurable "High" and "Low" warnings using three on-instrument-face buttons
  • Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
  • Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
  • Solid-state data acquisition grade sending units provide unmatched gauge accuracy and withstand the harshest environments.

Key Specs

MFG. Part #P325328
BrandAutoMeter

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

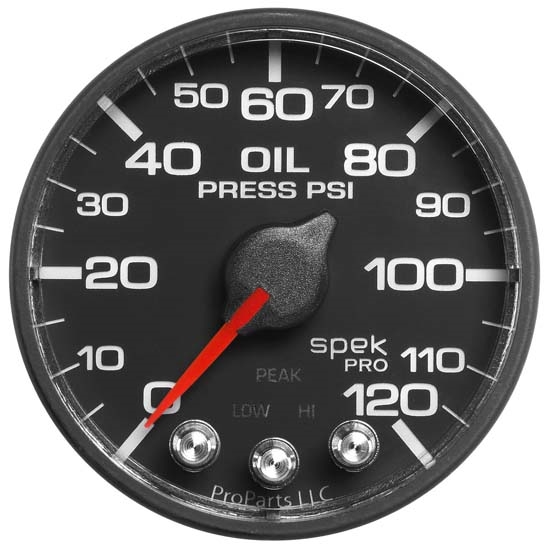

The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. Auto Meter's Digital Stepper Motor Oil Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won't find anywhere else. Our advanced 1/8" NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. A direct plug in wiring harness is also included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
  • 7 user selectable colors to match visual preferences of driver and visibility conditions
  • Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps
  • Set custom alert points (High Temperature/Low Pressure) specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
  • Acquire data for later review with one-touch Peak Recall functionalityIncludes 8ft. Wiring harness and data acquisition grade sending unit
  • Wide-Angle Dial size and bright illumination creates easy, clear reading
  • Easy programming from buttons located on the faceplate, no separate control module required.

Ships with the following AutoMeter products:

Sending Unit(s):  P13153
Wire Harness:  P19380
Mounting Hardware:  P12467

Ships with the following AutoMeter products:

Sending Unit(s):  P13153
Wire Harness:  P19380
Mounting Hardware:  P12467

Charts

Specifications

KEY SPECS
MFG. Part #P325328
BrandAutoMeter
GENERAL
Gauge Diameter2-1/16"
Gauge SeriesAnalog
Gauge StyleStepper
Gauge Range0-120 PSI
Gauge Face ColorBlack
Needle ColorFluorescent Red
Lighting TypeLED
Light Color7 User Selectable Colors
Overall Diameter2-1/16"
Bezel FinishBlack
Sold in QuantityEach
Bezel StyleSpek
GTIN Code046074153105
