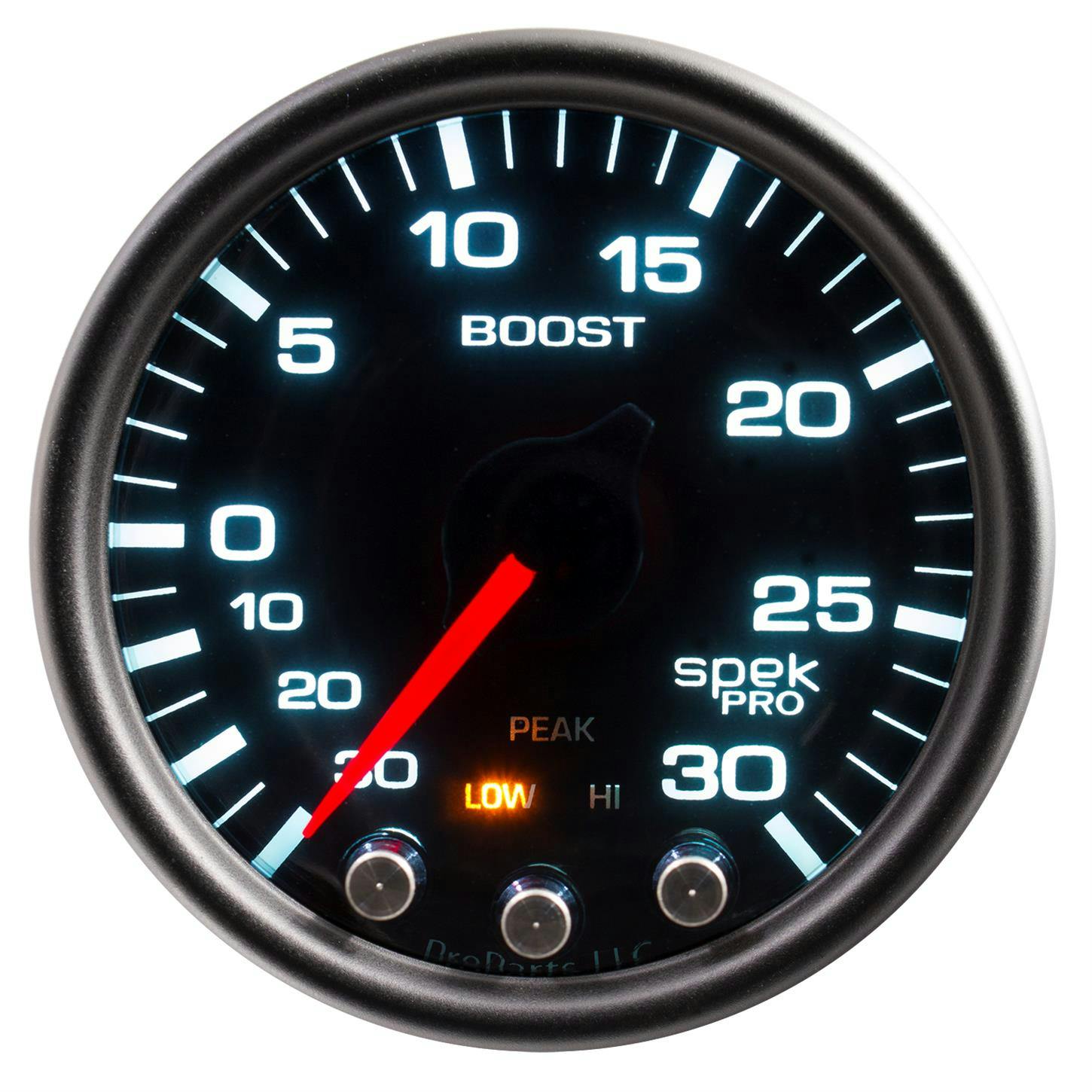

AutoMeter P30252 Spek-Pro Boost/Vacuum Gauge, 2-1/16,37 PSI,Domed

Keeping track of the vacuum and boost on your forced induction application is critical for extracting the most power safely while keeping your engine in the powerband. Auto Meter’s Digital Stepper Motor Boost/Vacuum Gauges provide the most accurate eadings available, unparalleled response time and smooth needle movement. Taking advantage of Auto Meter’s advanced circuitry, these gauges automatically calibrate on every startup to compensate for altitude, barometric pressure and other atmospheric conditions. Includes an advanced MAP sensor and wiring harness for ease of installation. Designed for gasoline engines, a boost only version is also available for diesel or extreme boost applications.

• 7 color user-selectable background illuminations (red, blue, green, white, yellow, orange, and violet) with adjustable brightness for day and night - with independent dimming of dial and pointer.
• Configurable "High" and "Low" warnings using three on-instrument-face buttons
• Pro-Control output enables a 1.5 amp load to activate a relay and trigger your choice of warning lights, external buzzers, fans, pumps, or features such as water/meth/nitrous injection.
• Features a peak recall function, which enables the user to review high gauge readings. The highest reading will be stored by the gauge until it is cleared.
• Solid-state data acquisition grade sending units provide unmatched gauge accuracy and withstand the harshest environments.
• Includes patented light-weight, spin-on bracket and pre-wired harness for simplified installation.
• Patented Wide Angle dial design provides the largest viewable dial available in a 2-1/16" gauge.
• Precision 280° brushless stepper motor movement provides a quiet, fluid, and accurate pointer movement with superior dial resolution.

Ships with the following AutoMeter products:

Sending Unit(s):  P13115
Wire Harness:  P19320
Mounting Hardware:  P12467

Ships with the following AutoMeter products:

Sending Unit(s):  P13115
Wire Harness:  P19320
Mounting Hardware:  P12467
