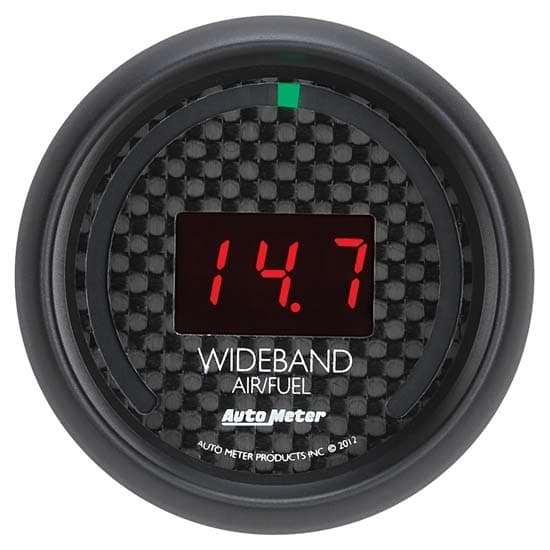

AutoMeter 8079 GT Digital Wideband Air/Fuel Ratio (AFR) Gauge

#1828079

AutoMeter 8079 GT Digital Wideband Air/Fuel Ratio (AFR) Gauge

Name: AutoMeter 8079 GT Digital Wideband Air/Fuel Ratio (AFR) Gauge
Brand: AutoMeter
SKU: 1828079
Price: 287.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
0-4v data output feed for ECU, data acquisition unit, or Laptop tuning
Suitable for use with gasoline powered engines

Type:

Wideband AFR

Tachometer / 5" In-Dash 5-Gauge Set / Electric Water Temperature Fuel Level / 0-280 Ohm Pyrometer / 1600 Degree Wideband AFR Analog Fuel Pressure / 100 PSI Oil Pressure Fuel Level / 0-90 Ohm Tachometer / 3-3/8" In-Dash Speedometer / 5"Speedometer / 3-3/8"

$287.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2-1/16" Overall Diameter, Carbon Fiber

Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
0-4v data output feed for ECU, data acquisition unit, or Laptop tuning
Suitable for use with gasoline powered engines
Digital segment display and LED radial bar graph display
10:1 to 20:1 AFR range for gasoline applications

See more details

Key Specs

MFG. Part #	8079
Brand	AutoMeter

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AutoMeter 8079 Details

Taking the core features from Auto Meter's Pro Wideband, the Street Wideband provides the most important functions necessary to make sure you're extracting the most power possible, safely. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.

Includes 8ft. Wiring Harness
Includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor
0-4v data output feed for ECU, data acquisition unit, or Laptop tuning
User programmable range
Peak recall/memory
10:1 to 20:1 AFR Range for Gasoline Applications
Adjustable for Alternate Fuel Types (Ethanol, Methanol, Propane, CNG) 6:1 to 18:1 AFR Range for Alternate Fuel Types
User Programmable Warning Function
Display data in Lambda or numerical A/F ratio

Ships with the following AutoMeter products:

Sending Unit(s):  2243
Adapters/Fittings:  M18X1.5 Fitting and Plug
Wire Harness:  5298
Mounting Hardware:  2230

Ships with the following AutoMeter products:

Sending Unit(s):  2243
Adapters/Fittings:  M18X1.5 Fitting and Plug
Wire Harness:  5298
Mounting Hardware:  2230

Charts

Installation Instructions (PDF)

Guides & Documents

Air/Fuel Ratio Gauges Installation Instructions (1828079)

AutoMeter 8079 Specifications

KEY SPECS
MFG. Part #	8079
Brand	AutoMeter

GENERAL
Overall Diameter	2-1/16
Sold in Quantity	Each
Gauge Type	Electric
Gauge Range	10:1-17:1 AFR
Gauge Face Color	Carbon Fiber
Bezel Finish	Black
Sending Unit Included	Yes
Lighting Type	7 Segment LED
AFR Gauge Type	Wideband
Includes Wire Harness	Yes
Includes Mounting Bracket(s)	Yes
GTIN Code	046074080791
