Product Summary

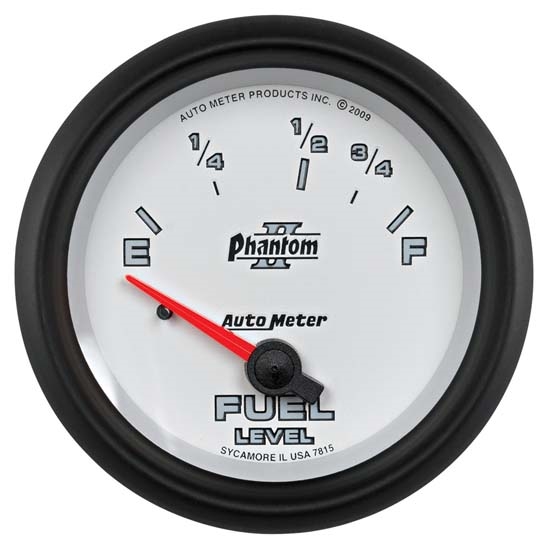

Universal Fit, 2.6" Body Diameter, Electric Gauge Type

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes mounting hardware and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Key Specs

MFG. Part #7815
BrandAutoMeter

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the Auto Meter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
  • Features Hi-Def through-the-dial white LED lighting
  • Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Mounting Hardware:  3245

Ships with the following AutoMeter products:

Mounting Hardware:  3245

Charts

Specifications

KEY SPECS
MFG. Part #7815
BrandAutoMeter
GENERAL
Overall Diameter2-5/8"
Body Diameter2.6"
Ohm Range73 ohms empty, 10 ohms full
Gauge TypeElectric
Gauge RangeEmpty/Full
LightedYes
Gauge Face ColorWhite
Needle ColorFluorescent Red
Bezel FinishBlack
Sold in QuantityEach
NotesGauge, Fuel Level, 2 5/8", 73OE to 10OF, Elec, Phantom II
Lighting TypeLED
Light ColorWhite
Includes Mounting Bracket(s)Yes
GTIN Code046074078156
Mount Hole Size2.625"
