#1827357

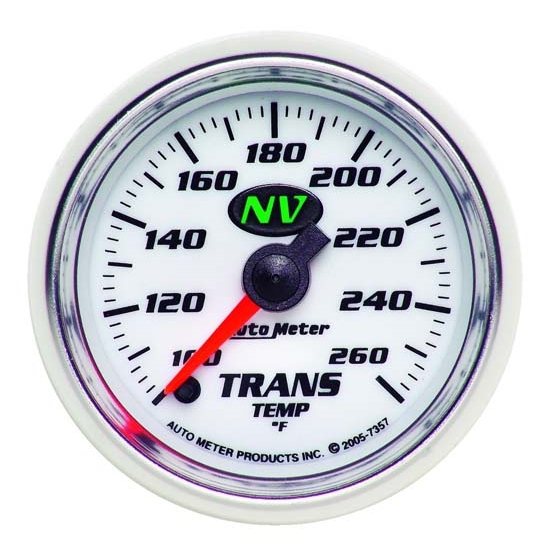

AutoMeter 7357 NV Digital Stepper Motor Transmission Temp Gauge
- Modern green LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
$183.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 100-260° F Gauge Range, White
- Modern green LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Key Specs
| MFG. Part # | 7357 |
| Overall Diameter | 2-1/16 |
| Gauge Range | 100-260° F |
| Gauge Type | Electric |
| Gauge Face Color | White |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 7357 Details
AutoMeter 7357 Details
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, Auto Meter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. Auto Meter's most advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
- Features Hi-Def through-the-dial green LED lighting
- Includes 8ft. Wiring Harness
- Includes 1/8" NPT Sender.
- Includes 3/8" and 1/2" NPT adapter/fitting.
- Includes gauge mounting hardware and installation instructions
- Full sweep precision digital stepper motor meter movement.
Ships with the following AutoMeter products:
Sending Unit(s): 2252
Adapters/Fittings: 3/8" NPT and 1/2" NPT adapter fittings
Wire Harness: 5226
Mounting Hardware: 2230
Ships with the following AutoMeter products:
Sending Unit(s): 2252
Adapters/Fittings: 3/8" NPT and 1/2" NPT adapter fittings
Wire Harness: 5226
Mounting Hardware: 2230
Charts
Guides & Documents
AutoMeter 7357 Specifications
AutoMeter 7357 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 7357 |
| Brand | AutoMeter |
| Overall Diameter | 2-1/16 |
| Gauge Range | 100-260° F |
| Gauge Type | Electric |
| Gauge Face Color | White |
| Bezel Finish | Bright Anodized |
| Sending Unit Included | Yes |
| GENERAL | |
| Needle Color | Fluorescent Red |
| Lighting Type | LED |
| Includes Wire Harness | Yes |
| Includes Mounting Bracket(s) | Yes |
| Sold in Quantity | Each |
| GTIN Code | 046074073571 |
