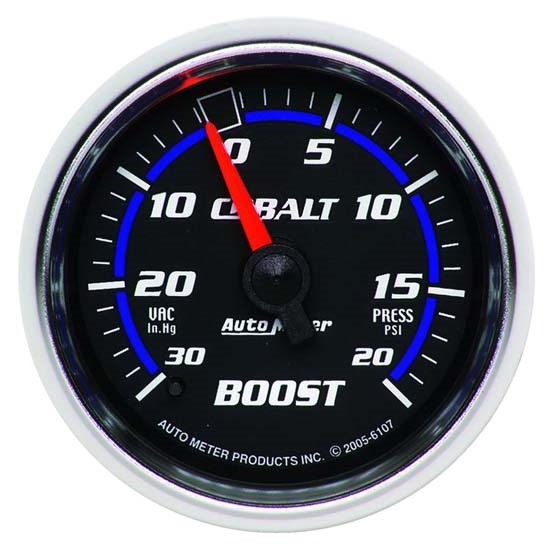

AutoMeter 6107 Cobalt Mechanical Boost/Vacuum Gauge, 2-1/16 Inch

#1826107

AutoMeter 6107 Cobalt Mechanical Boost/Vacuum Gauge, 2-1/16 Inch

Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
No electrical system required for gauge operation - compatible with every street or race vehicle

$112.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2.06" Body Diameter, Fluorescent Red

Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
No electrical system required for gauge operation - compatible with every street or race vehicle
Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, mounting hardware, and detailed instructions for installation
Mechanical movements provide accuracy and durability even in the harshest environments

See more details

Key Specs

MFG. Part #	6107
Overall Diameter	2-1/16
Body Diameter	2.06"
Gauge Type	Mechanical
Gauge Range	30 IN HG/20 PSI

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AutoMeter 6107 Details

The standard in the industry, Auto Meter's Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn't another gauge on the market that can lay claim to the levels of accuracy or durability you'll find here. A simple 1/8" NPT pressure connection requires no electrical hookup for operation. Includes 1/8" NPT fittings and nylon line kit.

Features Hi-Def through-the-dial blue LED lighting
Includes 10 ft. Nylon tubing
Includes T-Fitting
Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
Tubing:  10 ft. nylon tubing
Mounting Hardware:  2230

Ships with the following AutoMeter products:

Charts

Installation Instructions (PDF)

Guides & Documents

Boost Gauges Installation Instructions (1826107)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AutoMeter 6107 Specifications

KEY SPECS
MFG. Part #	6107
Brand	AutoMeter
Overall Diameter	2-1/16
Body Diameter	2.06"
Gauge Type	Mechanical
Gauge Range	30 IN HG/20 PSI
Gauge Face Color	Black
Lighted	Yes
Bezel Finish	Bright Anodized
Mount Hole Size	2.0625"

GENERAL
Needle Color	Fluorescent Red
Sold in Quantity	Each
Includes Tubing	Yes
Includes Mounting Bracket(s)	Yes
Lighting Type	LED
GTIN Code	046074061073
