Product Summary

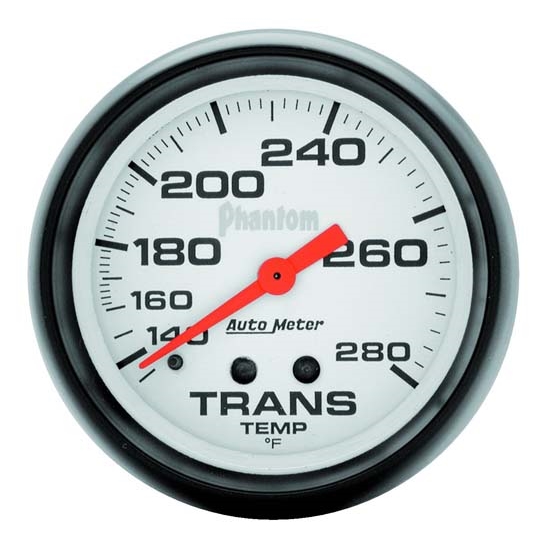

Universal Fit, 140-280° F Gauge Range, White, Black

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Key Specs

MFG. Part #5851
BrandAutoMeter

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, Auto Meter's Mechanical Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. An 8' Capillary Tube with a 1/2" NPT mounting nut is included to be installed in your transmission pan. An optional trans cooler line manifold is available for another easy installation option.
  • Includes bulb and socket assembly with red and green bulb covers
  • Includes 8ft. capillary tubing
  • Includes 1/2" NPT adapter/fitting.
  • Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Adapters/Fittings:  1/2"" NPT adapter/fitting.
Tubing:  10.5 ft. Capillary Tube
Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Ships with the following AutoMeter products:

Adapters/Fittings:  1/2"" NPT adapter/fitting.
Tubing:  10.5 ft. Capillary Tube
Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Charts

Specifications

KEY SPECS
MFG. Part #5851
BrandAutoMeter
GENERAL
Overall Diameter2-5/8
Gauge Range140-280° F
Gauge TypeMechanical
Gauge Face ColorWhite
Needle ColorFluorescent Red
Bezel FinishBlack
Sold in QuantityEach
Lighting TypeIncandescent
Includes TubingYes
Includes Mounting Bracket(s)Yes
GTIN Code046074058516
