Product Summary

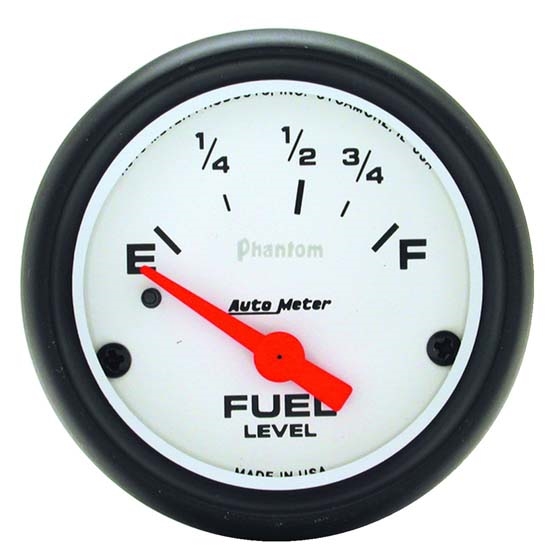

Universal Fit, 2.6" Body Diameter, Electric Gauge Type

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most 1965 to 1997 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Key Specs

MFG. Part #5814
BrandAutoMeter

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the Auto Meter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
  • Includes bulb and socket assembly with red and green bulb covers
  • Works with most 1965 to 1997 Chevrolet/GM senders
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Ships with the following AutoMeter products:

Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Charts

Specifications

KEY SPECS
MFG. Part #5814
BrandAutoMeter
GENERAL
Overall Diameter2-5/8"
Body Diameter2.6"
Ohm Range0 ohms empty, 90 ohms full
Gauge TypeElectric
Gauge RangeEmpty/Full
LightedYes
Gauge Face ColorWhite
Needle ColorFluorescent Red
Bezel FinishBlack
Sold in QuantityEach
NotesGauge, Fuel Level, 2 5/8", 0OE to 90OF, Elec, Phantom
Lighting TypeIncandescent
Light ColorWhite Incandescent
Includes Bulb and SocketYes
Includes Light CoversYes
Includes Mounting Bracket(s)Yes
GTIN Code046074058141
Mount Hole Size2.625"
