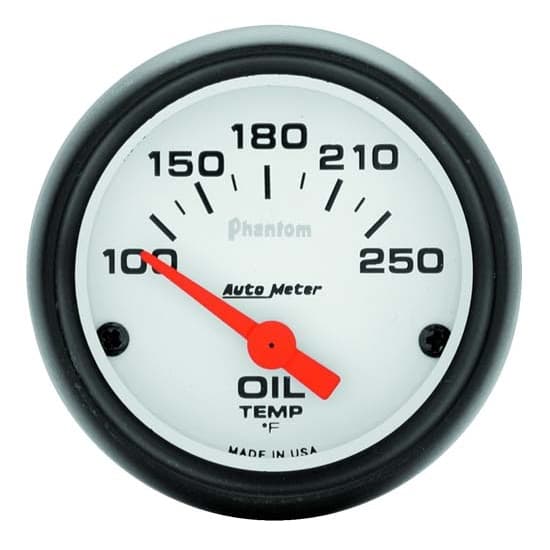

AutoMeter 5747 Phantom Air-Core Electric Oil Temp Gauge, 2-1/16

Ask a Question

Traditional incandescent lighting illuminates around the perimeter of the dial
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

$76.99

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before March 29th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2-1/16" Gauge Diameter, White, Lighted

Traditional incandescent lighting illuminates around the perimeter of the dial
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

See more details

Key Specs

MFG. Part #	5747
Brand	AutoMeter

See more specs

Need To Know

Free Shipping on Orders Over $149

Need help?

Quick and Easy Returns

AutoMeter 5747 Details

An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to Auto Meter's patented air core meter movement, a single wire, 1/8" NPT temperature sender is included.

Includes bulb and socket assembly with red and green bulb covers
Includes 1/8" NPT Sender and 3/8" NPT and 1/2" NPT adapter/fittings
Features Air-Core meter movement
Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Sending Unit(s):  2258
Adapters/Fittings:  3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  2230

Ships with the following AutoMeter products:

Sending Unit(s):  2258
Adapters/Fittings:  3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  2230

Charts

Installation Instructions (PDF)

Guides & Documents

Oil Temperature Gauges Instruction Sheet (1825747)

AutoMeter 5747 Specifications

KEY SPECS
MFG. Part #	5747
Brand	AutoMeter

GENERAL
Gauge Diameter	2-1/16"
Gauge Series	Analog
Gauge Style	Electric
Gauge Face Color	White
Needle Color	Fluorescent Red
Gauge Range	100-250 °F
Lighted	Yes
Sending Unit Included	Yes
Gauge Type	Electric
Bezel Finish	Black
Bezel Style	Super Bezel
Light Color	White Incandescent
Lighting Type	Incandescent
Included Adapter/Fitting	3/8" NPT and 1/2" NPT adapter fittings
Includes Mounting Bracket(s)	Yes
Includes Light Covers	Yes
Includes Bulb and Socket	Yes
GTIN Code	046074057472
Sold in Quantity	Each
