Product Summary

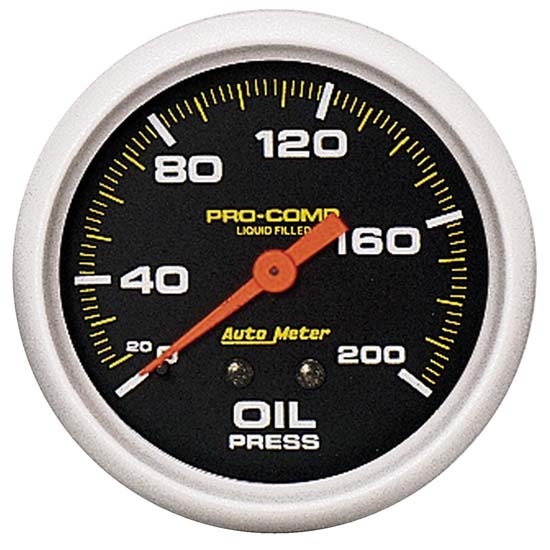

Universal Fit, 2-5/8" Gauge Diameter, Black, White

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
  • Liquid filled design for superior resistance to shock, vibration, and the elements.
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

Key Specs

MFG. Part #5422
BrandAutoMeter

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

These mechanical Pro-Comp Liquid Filled gauges are designed for racing applications with extreme vibrations or violent pounding. The bourbon tube gauge mechanism is encased in a special dampening fluid that absorbs all vibrations. This protection not only provides steadiness to the pointer but also adds longer life to the instrument.

  • 2-5/8" O.D.
  • Includes 10 ft. nylon tubing with 1/8" NPT fittings
  • Includes 1/4 NPT adapter/fitting
  • Illuminates via incandescent bulbs and around-the-dial lighting
  • Red and Green bulb covers included

Item Details

0-200 psi, Has 1/8" NPT male fitting on back for line hook-up

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
Tubing:  10 ft. nylon tubing
Bulb & Socket:  3211
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
Tubing:  10 ft. nylon tubing
Bulb & Socket:  3211
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Charts

Specifications

KEY SPECS
MFG. Part #5422
BrandAutoMeter
GENERAL
Gauge Diameter2-5/8"
Gauge SeriesAnalog
Gauge StyleMechanical
Gauge Range0-200 PSI
Gauge Face ColorBlack
Lettering ColorWhite
Needle ColorFluorescent Red
LightedYes
Lighting TypeIncandescent
Light ColorWhite Incandescent
Liquid FilledYes
Overall Diameter2.85"
Body Diameter2.61"
Body Length1.43"
Depth2.04"
Stud Length.52"
Stud Diameter.16"
Tube Length10.00 ft.
Thread Pitch1/8" NPT and 1/4" NPT adapter.
Bezel FinishBrushed Aluminum
Sold in QuantityEach
NotesIncludes 1/8" NPT fittings.
Bezel StyleSuper Bezel
Included Adapter/Fitting1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
Included Tubing10 ft. nylon tubing
Includes Bulb and SocketYes
Includes Light CoversYes
Includes Mounting Bracket(s)Yes
GTIN Code046074054228
