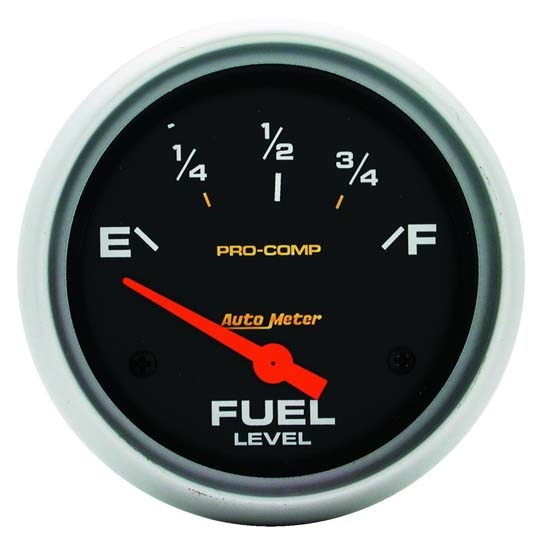

AutoMeter 5415 Pro-Comp Air-Core Fuel Level Gauge, 2-5/8 Inch
AutoMeter 5415 Pro-Comp Air-Core Fuel Level Gauge, 2-5/8 Inch
AutoMeter

|

#1825415

AutoMeter 5415 Pro-Comp Air-Core Fuel Level Gauge, 2-5/8 Inch

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most 1965 to 1997 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
See More

$86.99

/each

Factory Shipped

Garage Sale alternatives: from $68.39


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2.6" Body Diameter, Electric Gauge Type

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most 1965 to 1997 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
See more details

Key Specs

MFG. Part #5415
BrandAutoMeter
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

AutoMeter 5415 Details

One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the Auto Meter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
  • Includes bulb and socket assembly with red and green bulb covers
  • Works with most 1965 to 1997 Chevrolet/GM senders
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Ships with the following AutoMeter products:

Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Charts

AutoMeter 5415 Specifications

KEY SPECS
MFG. Part #5415
BrandAutoMeter
GENERAL
Overall Diameter2-5/8"
Body Diameter2.6"
Ohm Range0 ohms empty, 90 ohms full
Gauge TypeElectric
Gauge RangeEmpty/Full
LightedYes
Gauge Face ColorBlack
Needle ColorFluorescent Red
Bezel FinishBrushed Aluminum
Sold in QuantityEach
NotesGauge, Fuel Level, 2 5/8", 0OE to 90OF, Elec, Pro-Comp
Lighting TypeIncandescent
Light ColorWhite Incandescent
Includes Bulb and SocketYes
Includes Light CoversYes
Includes Mounting Bracket(s)Yes
GTIN Code046074054150
Mount Hole Size2.625"
