AutoMeter 5284 GM LS Sensor Fitting Installation Kit
Universal Fit, Straight Angle, Brass, Natural
- Comes with a 10,000 Ohm Pull Up Resistor
- Features an all brass construction with a natural finish
- The pull up resistor is used when connecting a tachometer to your engine's ECU
- Specially designed for installation of Auto Meter full sweep and short sweep electric gauges
- Commonly used adapter fittings to assist with the mounting of your gauge sensors, a short depth temperature sensor specific to the LS / LQ installation requirements
Swapping an GM LS or LQ series engine into your project and trying to figure out how and where to connect all your gauges? This is what you need! This LS Install Kit from Auto Meter includes a full color booklet with step by step instructions and photos documenting the most common installation points for essentials like oil pressure, coolant temp, RPM and more! In addition to the handy manual compiled by Auto Meter's R&D staff, the kit also includes a package of commonly used adapter fittings to assist with the mounting of your gauge sensors, a short depth temperature sensor specific to the LS / LQ installation requirements, and a pull up resistor used when connecting a tachometer to your engine's ECU.

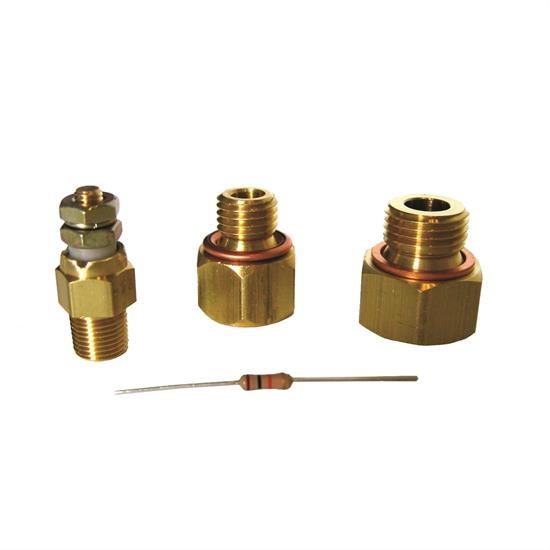

- 10,000 Ohm Pull Up Resistor
- 1/8"NPTF Short Depth Eletric Water Temp Sensor
- M16x1.5 Male to 1/8" NPTF Female adapter for oil pressure
- M12x1.5 Male to 1/8" NPTF Female adapter for water temperature
- For installation of Auto Meter Full Sweep and Short Sweep Electric Gauges ONLY!
ChartsInstallation Instructions (PDF)
