Product Summary

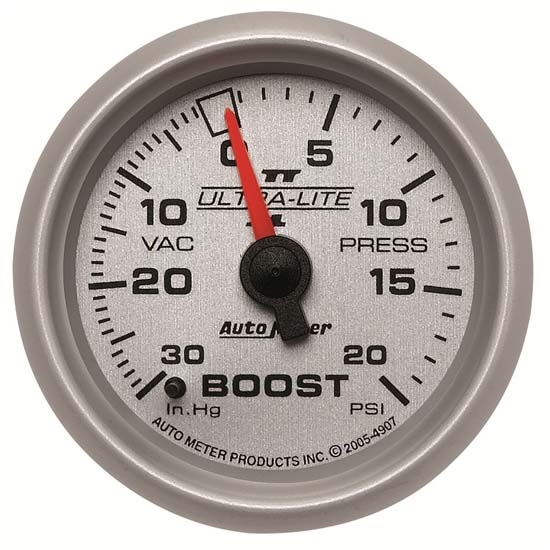

Universal Fit, 2.06" Body Diameter, Fluorescent Red

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, mounting hardware, and detailed instructions for installation
  • Mechanical movements provide accuracy and durability even in the harshest environments

Key Specs

MFG. Part #4907
BrandAutoMeter

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

The standard in the industry, Auto Meter's Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn't another gauge on the market that can lay claim to the levels of accuracy or durability you'll find here. A simple 1/8" NPT pressure connection requires no electrical hookup for operation. Includes 1/8" NPT fittings and nylon line kit.
  • Features Hi-Def through-the-dial white LED lighting
  • Includes 10 ft. Nylon tubing
  • Includes T-Fitting
  • Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
Tubing:  10 ft. nylon tubing
Mounting Hardware:  2230

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
Tubing:  10 ft. nylon tubing
Mounting Hardware:  2230

Charts

Specifications

KEY SPECS
MFG. Part #4907
BrandAutoMeter
GENERAL
Overall Diameter2-1/16
Body Diameter2.06"
Gauge TypeMechanical
Gauge Range30 IN HG/20 PSI
Needle ColorFluorescent Red
Gauge Face ColorSilver
LightedYes
Bezel FinishBrushed Aluminum
Sold in QuantityEach
Includes TubingYes
Includes Mounting Bracket(s)Yes
Lighting TypeLED
GTIN Code046074049071
Mount Hole Size2.0625"
