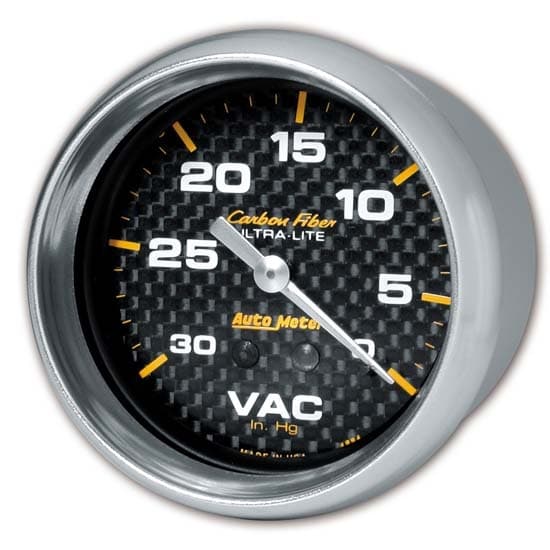

AutoMeter 4884 Carbon Fiber Mechanical Vacuum Gauge, 2-5/8 Inch

Ask a Question

Traditional incandescent lighting illuminates around the perimeter of the dial
AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
No electrical system required for gauge operation - compatible with every street or race vehicle

$112.99

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before April 4th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Mechanical Gauge Type, Carbon Fiber

Traditional incandescent lighting illuminates around the perimeter of the dial
AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
No electrical system required for gauge operation - compatible with every street or race vehicle
Mechanical movements provide accuracy and durability even in the harshest environments
Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

See more details

Key Specs

MFG. Part #	4884
Brand	AutoMeter

See more specs

Need To Know

Free Shipping on Orders Over $149

Need help?

Quick and Easy Returns

AutoMeter 4884 Details

Whether tuning your vehicle for maximum performance or monitoring your driving for maximum fuel economy, Auto Meter's Mechanical Vacuum Gauge has been the solution trusted by professionals for years. An ultra precise bourdon tube meter movement sits at the heart of this instrument, providing the kind of accuracy and durability necessary to compete at the highest levels. A simple 1/8" NPT fitting on the back makes installation easy, and 1/8" nylon line and fittings are included.

Includes bulb and socket assembly with red and green bulb covers

Ships with the following AutoMeter products:

Adapters/Fittings:  1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
Tubing:  10 ft. nylon tubing
Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Ships with the following AutoMeter products:

Charts

Installation Instructions (PDF)

Guides & Documents

Vacuum Gauges Instruction Sheet (1824884)

CA Prop 65

AutoMeter 4884 Specifications

KEY SPECS
MFG. Part #	4884
Brand	AutoMeter

GENERAL
GTIN Code	046074048845
Overall Diameter	2-5/8"
Gauge Type	Mechanical
Gauge Range	0-30 IN HG
Gauge Face Color	Carbon Fiber
Needle Color	Silver
Bezel Finish	Bright Anodized
Sold in Quantity	Each
Notes	Gauge, Vacuum, 2 5/8", 30inHg, Mechanical, Carbon Fiber
Bezel Style	Super Bezel
Light Color	White Incandescent
Lighting Type	Incandescent
Sending Unit Included	No
Included Adapter/Fitting	1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
Includes Wire Harness	No
Includes Mounting Bracket(s)	Yes
Includes Bulb and Socket	Yes
Includes Light Covers	Yes
Included Tubing	10 ft. nylon tubing
