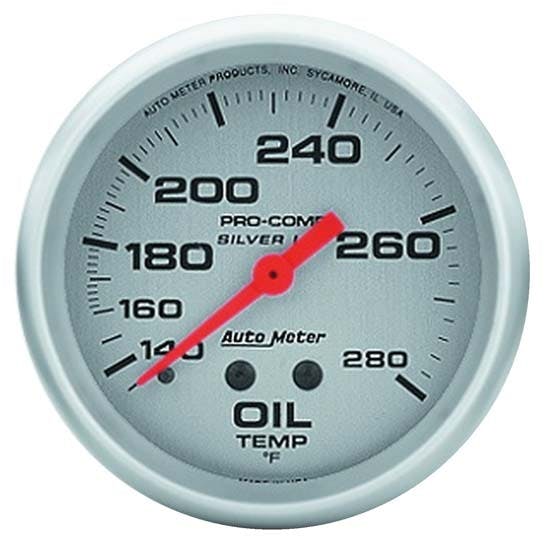

AutoMeter 4641 Ultra-Lite Mechanical Oil Temperature Gauge, 2-5/8

Ask a Question

Traditional incandescent lighting illuminates around the perimeter of the dial
Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
Liquid filled design for superior resistance to shock, vibration, and the elements.

$149.99

Factory Shipped

$161.99

Save $12.00

This part will be shipped by the manufacturer. We estimate this item will ship on or before September 26th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2-5/8" Gauge Diameter, Silver, Lighted

Traditional incandescent lighting illuminates around the perimeter of the dial
Liquid dampened movement provides smooth pointer movement and extended service life in harsh environment applications.
Liquid filled design for superior resistance to shock, vibration, and the elements.
AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
No electrical system required for gauge operation - compatible with every street or race vehicle

See more details

Key Specs

Gauge Diameter	2-5/8"
Gauge Series	Analog
Gauge Style	Mechanical
Gauge Face Color	Silver
Gauge Range	140-280 °F

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

AutoMeter 4641 Details

One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Utilizing Auto Meter's ultra precise bourdon tube meter movement, you can be assured of the most accurate possible readings of the life blood of your engine. A 6' capillary tube and 1/2" NPT mounting nut are included.

Includes bulb and socket assembly with red and green bulb covers
Includes 6ft. capillary tubing
Includes 1/2" NPT adapter/fitting.
Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Adapters/Fittings:  1/2"" NPT adapter/fitting.
Tubing:  6 ft. Capillary Tube
Bulb & Socket:  3211
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Ships with the following AutoMeter products:

Adapters/Fittings:  1/2"" NPT adapter/fitting.
Tubing:  6 ft. Capillary Tube
Bulb & Socket:  3211
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Charts

Installation Instructions (PDF)

Guides & Documents

Oil Temperature Gauges Instruction Sheet (1824641)

CA Prop 65

AutoMeter 4641 Specifications

KEY SPECS
MFG. Part #	4641
Brand	AutoMeter
Gauge Diameter	2-5/8"
Gauge Series	Analog
Gauge Style	Mechanical
Gauge Face Color	Silver
Gauge Range	140-280 °F
Lighted	Yes
Gauge Type	Mechanical

GENERAL
Needle Color	Fluorescent Red
Bezel Finish	Brushed Aluminum
Bezel Style	Super Bezel
Lighting Type	Incandescent
Included Adapter/Fitting	1/2"" NPT adapter/fitting.
Included Tubing	6 ft. Capillary Tube
Includes Mounting Bracket(s)	Yes
Includes Light Covers	Yes
Includes Bulb and Socket	Yes
GTIN Code	046074046414
Sold in Quantity	Each
