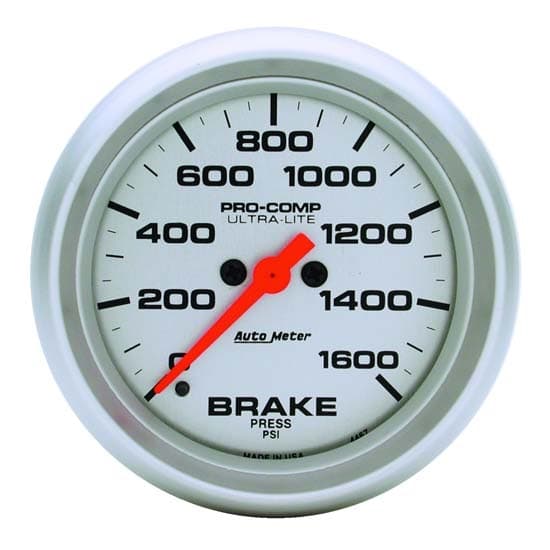

AutoMeter 4467 Ultra-Lite Digital StepperMotor Brake Press. Gauge
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
See More
$302.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 5th.
Add to a list
Share
Product Summary
Universal Fit, Electric Gauge Type, Silver
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
See more details
Key Specs
| MFG. Part # | 4467 |
| Brand | AutoMeter |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 4467 Details
AutoMeter 4467 Details
High brake system pressures make this an environment that few gauges are up to the task of handling. Auto Meter's Digital Stepper Motor Brake Pressure Gauge provides not only the accuracy you expect from a top of the line instrument, but the durability you need under even the most demanding conditions. Includes a highly advanced 1/8" NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.
- Includes bulb and socket assembly with red and green bulb covers
- Includes 8ft. Wiring Harness
- Includes 1/8" NPT Sender.
- Includes 1/8" NPT to 1/4" NPT adapter/fitting
- Includes gauge mounting hardware and installation instructions
- Full sweep precision digital stepper motor meter movement
Ships with the following AutoMeter products:
Sending Unit(s): 2240
Wire Harness: 5227
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 3245
Ships with the following AutoMeter products:
Sending Unit(s): 2240
Wire Harness: 5227
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 3245
Charts
Guides & Documents
AutoMeter 4467 Specifications
AutoMeter 4467 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 4467 |
| Brand | AutoMeter |
| GENERAL | |
| GTIN Code | 046074044670 |
| Gauge Type | Electric |
| Gauge Range | 0-1600 PSI |
| Gauge Face Color | Silver |
| Needle Color | Fluorescent Red |
| Sold in Quantity | Each |
| Bezel Finish | Brushed Aluminum |
| Overall Diameter | 2-5/8 |
| Lighting Type | Incandescent |
| Includes Wire Harness | Yes |
| Sending Unit Included | Yes |
| Includes Mounting Bracket(s) | Yes |
| Includes Bulb and Socket | Yes |
| Includes Light Covers | Yes |
| Bezel Style | Super Bezel |
| Light Color | White Incandescent |
