#1824415

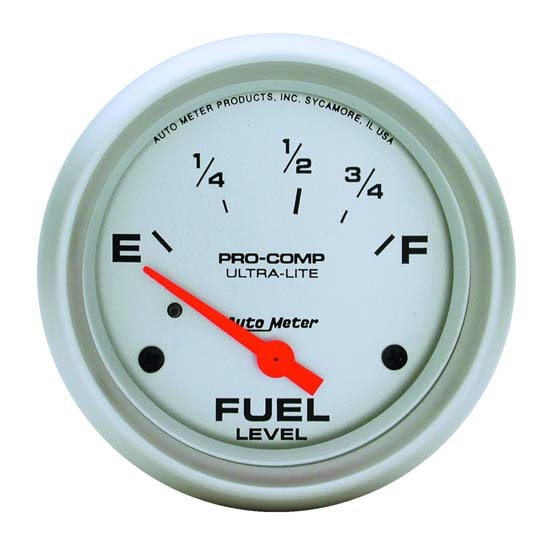

AutoMeter 4415 Ultra-Lite Air-Core Fuel Level Gauge, 2-5/8 Inch
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
$88.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 2.6" Body Diameter, Electric Gauge Type
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 4415 Details
AutoMeter 4415 Details
One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the Auto Meter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Includes bulb and socket assembly with red and green bulb covers
- Works with most Pre-1989 (Pre-1987 Mustang) Ford and most Chrysler
- Features Air-Core meter movement
- Includes gauge mounting hardware and installation instructions
Ships with the following AutoMeter products:
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 3245
Ships with the following AutoMeter products:
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 3245
Charts
Guides & Documents
AutoMeter 4415 Specifications
AutoMeter 4415 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 4415 |
| Brand | AutoMeter |
| GENERAL | |
| Overall Diameter | 2-5/8" |
| Body Diameter | 2.6" |
| Ohm Range | 73 ohms empty, 10 ohms full |
| Gauge Type | Electric |
| Gauge Range | Empty/Full |
| Lighted | Yes |
| Gauge Face Color | Silver |
| Needle Color | Fluorescent Red |
| Bezel Finish | Brushed Aluminum |
| Sold in Quantity | Each |
| Notes | Gauge, Fuel Level, 2 5/8", 73OE to 10OF, Elec, Ultra-Lite |
| Lighting Type | Incandescent |
| Light Color | White Incandescent |
| Includes Bulb and Socket | Yes |
| Includes Light Covers | Yes |
| Includes Mounting Bracket(s) | Yes |
| GTIN Code | 046074044151 |
| Mount Hole Size | 2.625" |
