#1824374

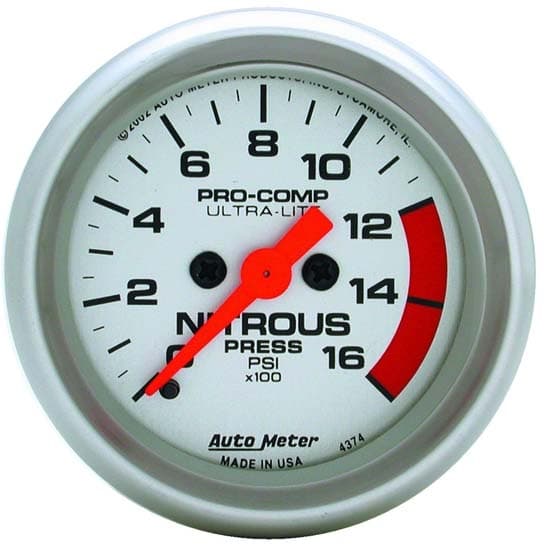

AutoMeter 4374 Ultra-Lite Digi. StepperMotor Nitrous Press Gauge
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
$276.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Brushed Aluminum, Silver
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Key Specs
| Bezel Finish | Brushed Aluminum |
| Gauge Face Color | Silver |
| Gauge Range | 0-1600 PSI |
| Gauge Type | Electric |
| Overall Diameter | 2-1/16" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 4374 Details
AutoMeter 4374 Details
Proper nitrous pressure is the difference between extracting maximum power from your engine and finishing second. Auto Meter's Digital Stepper Motor Nitrous Pressure Gauge uses our advanced 1/8" NPT solid state pressure transducer to give you the most precise possible reading of your system pressure ,up to 1600 psi. Built with the accuracy and durability required by the professional racer, there simply isn't a better possible solution. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
- Includes bulb and socket assembly with red and green bulb covers
- Includes 8ft. Wiring Harness
- Includes 1/8" NPT Sender
- Includes 1/8" NPT to 1/4" NPT adapter/fitting
- Includes gauge mounting hardware and installation instructions
- Full sweep precision digital stepper motor meter movement
Ships with the following AutoMeter products:
Sending Unit(s): 2240
Wire Harness: 5227
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 2230
Ships with the following AutoMeter products:
Sending Unit(s): 2240
Wire Harness: 5227
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 2230
Charts
Guides & Documents
AutoMeter 4374 Specifications
AutoMeter 4374 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 4374 |
| Brand | AutoMeter |
| Bezel Finish | Brushed Aluminum |
| Gauge Face Color | Silver |
| Gauge Range | 0-1600 PSI |
| Gauge Type | Electric |
| Overall Diameter | 2-1/16" |
| Sending Unit Included | Yes |
| GENERAL | |
| Light Color | White Incandescent |
| Lighting Type | Incandescent |
| Needle Color | Fluorescent Red |
| Includes Mounting Bracket(s) | Yes |
| Includes Light Covers | Yes |
| Includes Bulb and Socket | Yes |
| Includes Wire Harness | Yes |
| Bezel Style | Super Bezel |
| Sold in Quantity | Each |
| Notes | Gauge, Nitrous Pressure, 2 1/16", 1600psi, Electric, Ultra-Lite |
| GTIN Code | 046074043741 |
