#1823610

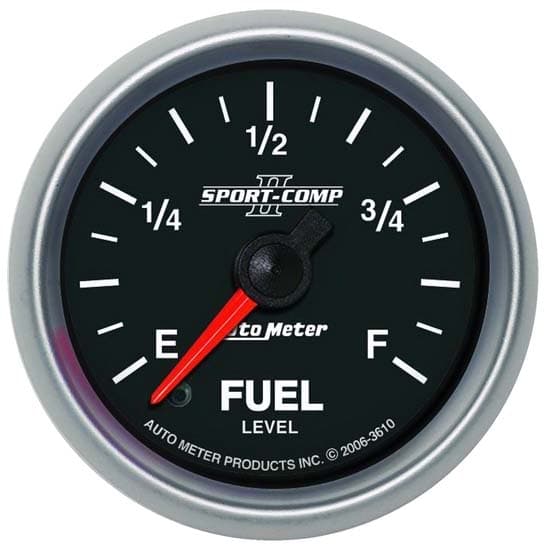

AutoMeter 3610 Sport-Comp II Digi. StepperMotor Fuel Level Gauge
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
- Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
See More
$160.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 3rd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 2.06" Body Diameter, Electric Gauge Type
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
- Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
- User definable resistance setting programmable anywhere between 0-280 ohms
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
See more details
Key Specs
| MFG. Part # | 3610 |
| Brand | AutoMeter |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 3610 Details
AutoMeter 3610 Details
Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The Auto Meter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
- Features Hi-Def through-the-dial white LED lighting
- Includes 20ft. Wiring Harness.
- Adjustable Scale w/ 7 preset ranges for common vehicle types
- Programmable anywhere between 0-280 ohms
- Includes gauge mounting hardware and installation instructions
- Full sweep precision digital stepper motor meter movement
Ships with the following AutoMeter products:
Wire Harness: 5233
Mounting Hardware: 2230
Ships with the following AutoMeter products:
Wire Harness: 5233
Mounting Hardware: 2230
Charts
Guides & Documents
AutoMeter 3610 Specifications
AutoMeter 3610 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 3610 |
| Brand | AutoMeter |
| GENERAL | |
| Overall Diameter | 2-1/16" |
| Body Diameter | 2.06" |
| Ohm Range | 0 ohms - 280 ohms Programmable |
| Gauge Type | Electric |
| Gauge Range | Empty/Full |
| Lighted | Yes |
| Gauge Face Color | Black |
| Needle Color | Fluorescent Red |
| Bezel Finish | Brushed Aluminum |
| Sold in Quantity | Each |
| Notes | Gauge, Fuel Level, 2 1/16", 0-280O Programmable, Sport-Comp II |
| Lighting Type | LED |
| Light Color | White |
| Includes Wire Harness | Yes |
| Includes Mounting Bracket(s) | Yes |
| GTIN Code | 046074036101 |
| Mount Hole Size | 2.0625" |
