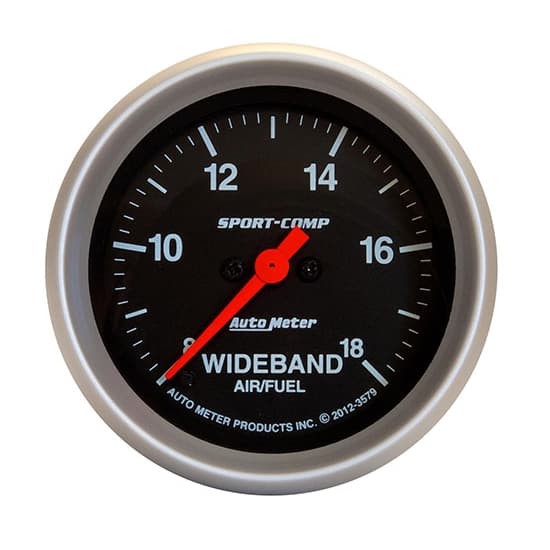

AutoMeter 3579 Sport-Comp Digital StepperMotor Wideband AFR Gauge

AutoMeter 3579 Sport-Comp Digital StepperMotor Wideband AFR Gauge
Universal Fit, 2-5/8" Overall Diameter, Electric Gauge Type, 8:1-18:1 AFR Gauge Range, Black
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle


AutoMeter 3579 Sport-Comp Digital StepperMotor Wideband AFR Gauge
X

We estimate this item will ship on or before May 10th.
Part # 1823579
$219.99
$330.84
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
- Display range of 8:1 to 18:1
- Suitable for use with gasoline powered engines
Details
MFG. Part #:
3579
Overall Diameter:
2-5/8"
Sold in Quantity:
Each
Gauge Type:
Electric
Gauge Range:
8:1-18:1 AFR
Gauge Face Color:
Black
Bezel Finish:
Brushed Aluminum
Sending Unit Included:
Yes
Lighting Type:
Incandescent
Needle Color:
Fluorescent Red
AFR Gauge Type:
Wideband
Includes Wire Harness:
Yes
Includes Mounting Bracket(s):
Yes
GTIN Code:
046074035791
Info
Mirroring the functions of Auto Meter's Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you're extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.
- Includes bulb and socket assembly with red and green bulb covers
- Includes 8ft. Wiring Harness
- Includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor
- Full sweep precision digital stepper motor meter movement.
- Display range of 8:1 to 18:1
- Suitable for use with gasoline powered engines
Notes
Ships with the following AutoMeter products:
Sending Unit(s): 2243
Adapters/Fittings: M18X1.5 Fitting and Plug
Wire Harness: 5298
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 3245
Charts
Important Messages
- This item ships directly from the manufacturer. It may take an additional 15 business days for AutoMeter to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
