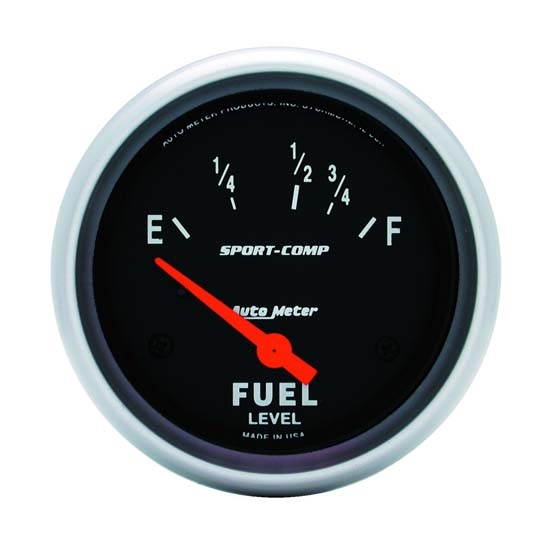

AutoMeter 3518 Sport-Comp Air-Core Elec. Fuel Level Gauge,2-5/8

Rebate

#1823518

AutoMeter 3518 Sport-Comp Air-Core Elec. Fuel Level Gauge,2-5/8

Traditional incandescent lighting illuminates around the perimeter of the dial
Works with most 1989 (1987 Mustang) and later Ford
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system

$83.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2.6" Body Diameter, Electric Gauge Type

Traditional incandescent lighting illuminates around the perimeter of the dial
Works with most 1989 (1987 Mustang) and later Ford
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Rebates Available

See rebate details

See more details

Key Specs

MFG. Part #	3518
Brand	AutoMeter

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AutoMeter 3518 Details

One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the Auto Meter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Includes bulb and socket assembly with red and green bulb covers
Works with most 1989 (1987 Mustang) and later Ford
Features Air-Core meter movement
Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Ships with the following AutoMeter products:

Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  3245

Charts

Installation Instructions (PDF)

Rebates

AutoMeter Hod Holidays Up To $150 MIR Select Parts

Purchase $100 or more in eligible AutoMeter products between November 1 and December 31, 2026 and receive a mail-in rebate ranging from $10 to $150, depending on your total qualifying purchase amount. Eligible brands include AutoMeter, Auto Gage, Dedenbear, Marine, Pro-Cycle, Spek-Pro, STACK, and AutoMeter Test Equipment products. To qualify, submit a completed rebate form, your original sales receipt or invoice, and the original UPC/barcode labels cut from each product box. All rebate requests must be postmarked by January 31, 2027. One rebate per household per rebate period; offer cannot be combined with other promotions and is valid only on new qualifying purchases. Incomplete, late, illegible, or non-compliant submissions will be rejected. Rebate requests are subject to verification and approval by AutoMeter Products, Inc., valid for U.S. customers only, and may take up to 12 weeks to process.

Guides & Documents

Fuel Level Gauges Installation Instructions (1823518)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AutoMeter 3518 Specifications

KEY SPECS
MFG. Part #	3518
Brand	AutoMeter

GENERAL
Overall Diameter	2-5/8"
Body Diameter	2.6"
Ohm Range	16 ohms empty, 158 ohms full
Gauge Type	Electric
Gauge Range	Empty/Full
Lighted	Yes
Gauge Face Color	Black
Needle Color	Fluorescent Red
Bezel Finish	Brushed Aluminum
Sold in Quantity	Each
Notes	Gauge, Fuel Level, 2 5/8", 16OE to 158OF, Elec, Sport-Comp
Lighting Type	Incandescent
Light Color	White Incandescent
Includes Bulb and Socket	Yes
Includes Light Covers	Yes
Includes Mounting Bracket(s)	Yes
GTIN Code	046074035180
Mount Hole Size	2.625"
