#1823431
AutoMeter 3431 Sport-Comp Mechanical Water Temperature Gauge
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
$111.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 2-5/8" Gauge Diameter, Black, White
- Traditional incandescent lighting illuminates around the perimeter of the dial
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments

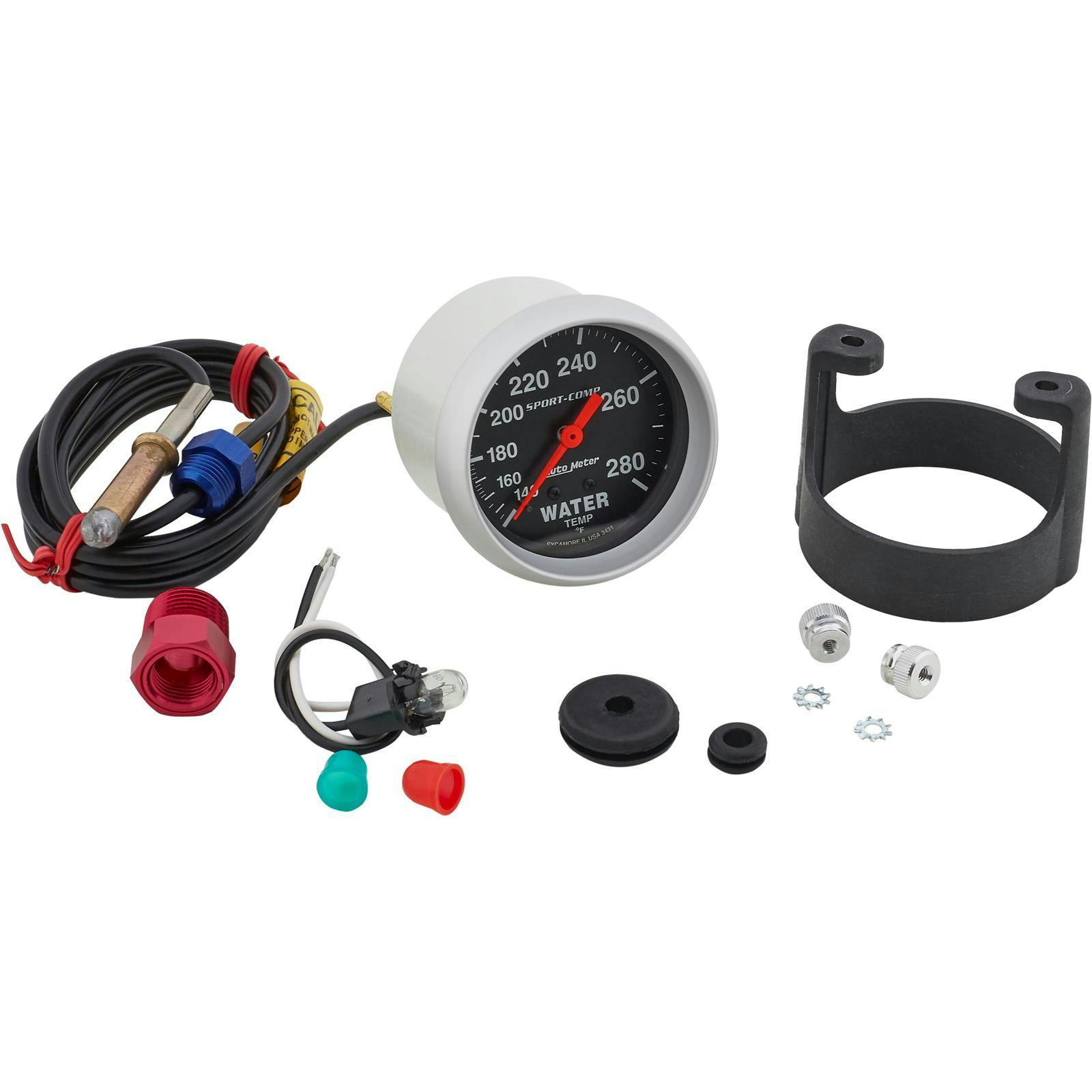

- Gauge kit includes 1/2" NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Key Specs
| MFG. Part # | 3431 |
| Brand | AutoMeter |
| Gauge Diameter | 2-5/8" |
| Gauge Range | 140-280 °F |
| Bezel Finish | Brushed Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 3431 Details
AutoMeter 3431 Details
Mechanical gauges have a trademarked competition appearance and provide rugged reliable performance. Temperature meter features white markings on a black face and a fluorescent red pointer for quick-glance monitoring. The gauge mechanisms are quality engineered with a sealed bourdon tube and 270° sweep for maximum accuracy.
Item Details
'140°-280°F, Includes 6'' capillary tube and 1/2" NPT fittingSport Comp Gauges are 2-5/8"'
Ships with the following AutoMeter products:
Adapters/Fittings: 1/2"" NPT adapter/fitting.
Tubing: 6 ft. Capillary Tube
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 3245
Ships with the following AutoMeter products:
Adapters/Fittings: 1/2"" NPT adapter/fitting.
Tubing: 6 ft. Capillary Tube
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 3245
Charts
Specs
Guides & Documents
AutoMeter 3431 Specifications
AutoMeter 3431 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 3431 |
| Brand | AutoMeter |
| Gauge Diameter | 2-5/8" |
| Gauge Range | 140-280 °F |
| Bezel Finish | Brushed Aluminum |
| GENERAL | |
| Gauge Series | Analog |
| Gauge Style | Mechanical |
| Gauge Face Color | Black |
| Lettering Color | White |
| Needle Color | Fluorescent Red |
| Lighted | Yes |
| Body Diameter | 2.61" |
| Body Length | 1.56" |
| Depth | 3.63" |
| Center to Center | 2.08" |
| Stud Length | 1.00" |
| Stud Diameter | .16" |
| Tube Length | 6.00" |
| Temp. Range | 140-280 degree gauge measurement range |
| Bezel Style | Super Bezel |
| Light Color | White Incandescent |
| Included Adapter/Fitting | 1/2"" NPT adapter/fitting. |
| Lighting Type | Incandescent |
| Includes Bulb and Socket | Yes |
| Includes Light Covers | Yes |
| Includes Mounting Bracket(s) | Yes |
| Included Tubing | 6 ft. Capillary Tube |
| Notes | Sensor has a 5/8"-18 thread fitting and includes an adapter to 1/2" NPT. Includes red and green light bulb covers. |
| GTIN Code | 046074034312 |
| Sold in Quantity | Each |
