#1822301

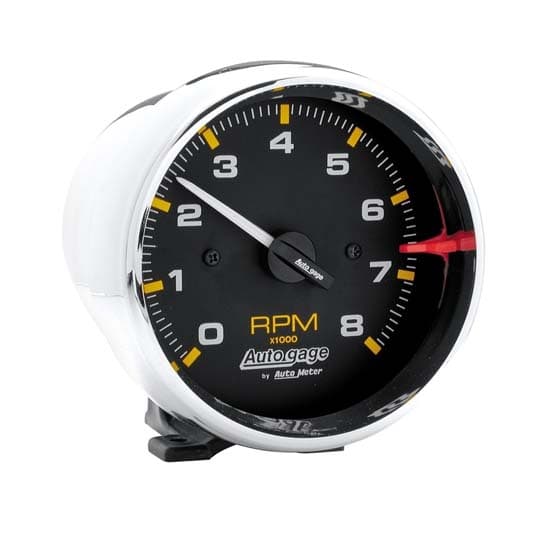

AutoMeter 2301 Auto Gage Air-Core Pedestal Tachometer Gauge
15 Reviews
|
1 Question
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Compatible with most 4, 6, and 8 cylinder engines (2 - 4 pulse per revolution ignition signals) with points, electronic, and most 12V high-performance racing ignitions.
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
See More
$101.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 3-3/4" Gauge Diameter, Black, White
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Compatible with most 4, 6, and 8 cylinder engines (2 - 4 pulse per revolution ignition signals) with points, electronic, and most 12V high-performance racing ignitions.
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Features a backlit display to improved nighttime visibility
- Body measures 3-1/2" in diameter and the overall diameter is 3-3/4"
See more details
Key Specs
| MFG. Part # | 2301 |
| Brand | AutoMeter |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 2301 Details
AutoMeter 2301 Details
These 3-3/4" diameter Autogage Series tachs by Auto Meter have a 8000 RPM range and include a backlight. Also includes a pedestal mount which can be mouted to your steering column or any flat surface. Operates on 4, 6, or 8 cylinder engines with points, electronic, and most 12V high performance racing ignitions.
Ships with the following AutoMeter products:
Bulb & Socket: 2382
Mounting Hardware: Bracket Included
Ships with the following AutoMeter products:
Bulb & Socket: 2382
Mounting Hardware: Bracket Included
Charts
Specs
- Diameter: 3 3/4" (95.3mm)
- Range: 0 - 8,000 rpm
Guides & Documents
AutoMeter 2301 Specifications
AutoMeter 2301 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2301 |
| Brand | AutoMeter |
| GENERAL | |
| Gauge Diameter | 3-3/4" |
| Gauge Type | Electric |
| Body Diameter | 3.50" |
| Gauge Face Color | Black |
| Lettering Color | White |
| Needle Color | White |
| RPM Range | 0-8,000 RPM |
| Overall Diameter | 3.78" |
| Lighted | Yes |
| Bezel Finish | Chrome |
| Memory Storage | No |
| Body Length | 2.30" |
| Depth | 2.56" |
| Bezel Included | Yes |
| Bezel Style | Auto Gage |
| Light Color | White Incandescent |
| Lighting Type | Incandescent |
| Includes Light Covers | Yes |
| Includes Bulb and Socket | Yes |
| Includes Mounting Bracket(s) | Yes |
| GTIN Code | 046074023019 |
| Sold in Quantity | Each |
