#1821817

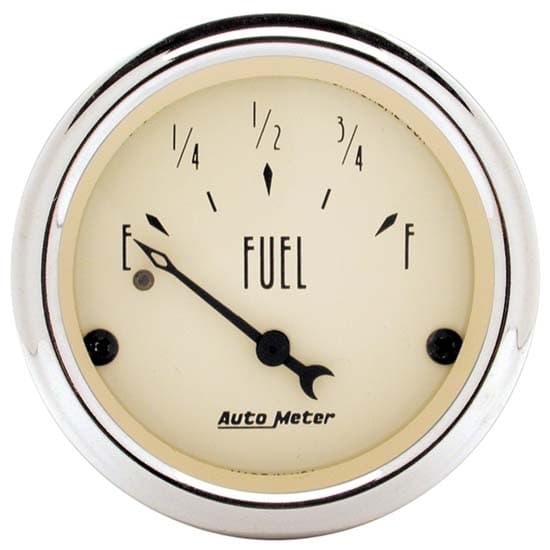

AutoMeter 1817 Antique Beige Air-Core Fuel Level Gauge
1 Review
|
Ask a Question
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with 240E/33F ohm senders, including AutoMeter 3262
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
See More
$61.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 3rd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 2.06" Body Diameter, Electric Gauge Type
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with 240E/33F ohm senders, including AutoMeter 3262
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
See more details
Key Specs
| MFG. Part # | 1817 |
| Brand | AutoMeter |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 1817 Details
AutoMeter 1817 Details
One of the most necessary gauges in any dashboard! Auto Meter’s Antique Beige series features a stylish art deco design, lustrous chrome bezel, and a domed lens to set this series apart. This fuel gauge features Auto Meter’s patented air-core movement which receives extra dampening to help combat the effects fuel slosh in a non-baffled tank.
- Includes bulb and socket assembly with red and green bulb covers
- Works with 240E/33F ohm senders, including Auto Meter 3262
- Features Air-Core meter movement
- Includes gauge mounting hardware and installation instructions
Ships with the following AutoMeter products:
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 2230
Ships with the following AutoMeter products:
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 2230
Charts
Guides & Documents
AutoMeter 1817 Specifications
AutoMeter 1817 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1817 |
| Brand | AutoMeter |
| GENERAL | |
| Overall Diameter | 2-1/16" |
| Body Diameter | 2.06" |
| Ohm Range | 240 ohms empty, 33 ohms full |
| Gauge Type | Electric |
| Gauge Range | Empty/Full |
| Lighted | Yes |
| Gauge Face Color | Beige |
| Needle Color | Black |
| Bezel Finish | Chrome |
| Sold in Quantity | Each |
| Notes | Gauge, Fuel Level, 2 1/16", 240OE to 33OF, Elec, Antique Beige |
| Lighting Type | Incandescent |
| Light Color | White Incandescent |
| Includes Bulb and Socket | Yes |
| Includes Light Covers | Yes |
| Includes Mounting Bracket(s) | Yes |
| GTIN Code | 046074018176 |
| Mount Hole Size | 2.0625" |
