Product Summary

Universal Fit, 5"" Overall Diameter, Beige, Black

  • Fuel level resistance range is 240 ohms empty to 33 ohms full
  • Voltmeter reads from 8-18v on negative ground electrical systems
  • This gauge set is the perfect solution to limited dashboard space
  • Kit includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender
  • Engineered to provide the accuracy and durability required by even the most demanding applications

Key Specs

MFG. Part #1803
BrandAutoMeter

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

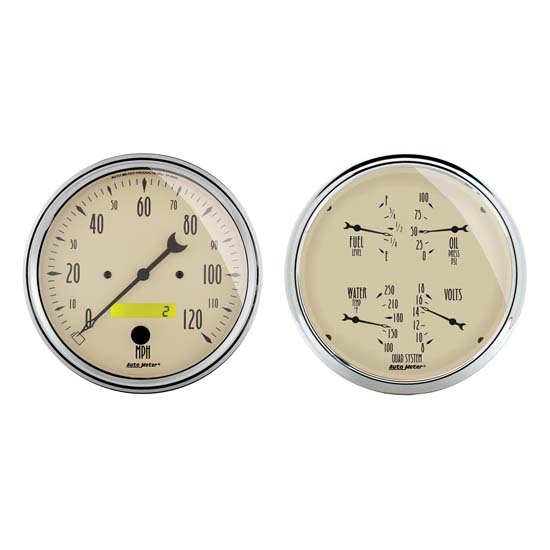

AutoMeter 1803 Details

Sometimes space is limited. The Auto Meter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual Auto Meter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with Auto Meter's 3262 fuel level sender).
  • Includes bulb and socket assembly with red and green bulb covers

Ships with the following AutoMeter products:

Sending Unit(s):  Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor
Adapters/Fittings:  3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket:  3212
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  Brackets Included

Ships with the following AutoMeter products:

Sending Unit(s):  Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor
Adapters/Fittings:  3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket:  3212
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  Brackets Included

Charts

AutoMeter 1803 Specifications

KEY SPECS
MFG. Part #1803
BrandAutoMeter
GENERAL
Overall Diameter5"
Gauge Range120 MPH/100 PSI/100-250 °F/8-18V/240OE-33OF
Gauge Face ColorBeige
Needle ColorBlack
Bezel FinishChrome
Sold in QuantityEach
NotesGauge Kit, 2 pc., Quad & Speedometer, 5", Antique Beige
Bezel StyleStreet Rod
Light ColorWhite Incandescent
Includes Bulb and SocketYes
Includes Light CoversYes
Includes Mounting Bracket(s)Yes
Lighting TypeIncandescent
Included Adapter/Fitting3/8" NPT and 1/2" NPT adapter fittings
GTIN Code046074018039
