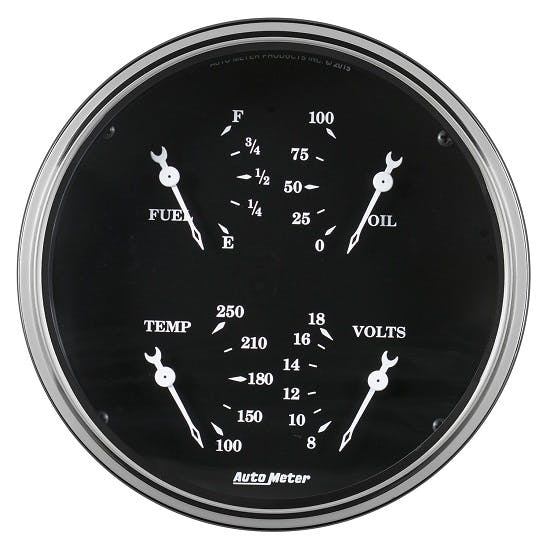

AutoMeter 1719 Old Tyme Black, 5" Quad Gauge
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
See More
$266.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 7th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Analog Gauge Series, Black, Chrome
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Rebates Available
See rebate details
See more details
Key Specs
| MFG. Part # | 1719 |
| Brand | AutoMeter |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Quad |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 1719 Details
AutoMeter 1719 Details
Sometimes space is limited. The Auto Meter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual Auto Meter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60’s through mid 90’s GM fuel level senders).
- Includes bulb and socket assembly with red and green bulb covers
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Auto Meter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Ships with the following AutoMeter products:
Sending Unit(s): Oil Sender 2242 - Water Sender 2258
Adapters/Fittings: 3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket: 3212
Light Covers: Red 3214 & Green 3215
Mounting Hardware: Bracket Included
Ships with the following AutoMeter products:
Sending Unit(s): Oil Sender 2242 - Water Sender 2258
Adapters/Fittings: 3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket: 3212
Light Covers: Red 3214 & Green 3215
Mounting Hardware: Bracket Included
Charts
Rebates
AutoMeter Cash for your Dash Rebate - 6/1 to 7/31
AutoMeter Cash for your Dash Rebate. Purchase Must be made between June 1, 2023 and July 31, 2023. Rebate request must be postmarked by August 31,2023. May not be combined with any other offer. No used, second hand, or reconditioned products qualify for this rebate. This rebate is limited to consumers. No dealer or distributor purchases qualify. Ebay and Custom Shop are not eligible. Limit one rebate request per household, per rebate period. All material becomes the property of AutoMeter Products, Inc. AutoMeter Products, Inc. is not responsiblee for incomplete forms or late, lost, illegible, stolen, delayed, un-postmarked, postage due, misdirected mail, or counterfeit products. Rebate requests that, in the sole discretion of AutoMeter Products, Inc., do not strictly comply with the terms and conditions of this offer, including any fraudulent requests, are invalid. Rebate will be in the form of a check in USD funds. Please allow up to 12 weeks for processing.
Guides & Documents
AutoMeter 1719 Specifications
AutoMeter 1719 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1719 |
| Brand | AutoMeter |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Quad |
| GENERAL | |
| Speedway Motors Catalog Part # | 182-1719 |
| Number of Gauge Housings | 1 |
| Gauge Face Color | Black |
| Bezel Finish | Chrome |
| Lighted | Yes |
| Lighting Type | Incandescent |
| Light Color | White Incandescent |
| Needle Color | White |
| Lettering Color | White |
| Bezel Style | Street Rod |
| Gauge Range | 100 PSI/100-250 °F/8-18V/0OE-90OF |
| Oil Pressure Gauge Included | Yes |
| Water Temperature Gauge Included | Yes |
| Fuel Level Gauge Included | Yes |
| Volt Gauge Included | Yes |
| Overall Diameter | 5" |
| Included Adapter/Fitting | Yes |
| Includes Bulb and Socket | Yes |
| Includes Light Covers | Yes |
| Includes Mounting Bracket(s) | Yes |
| Gauge Type | Electric |
| Sending Unit Included | Yes |
| GTIN Code | 046074017193 |
