#1821436

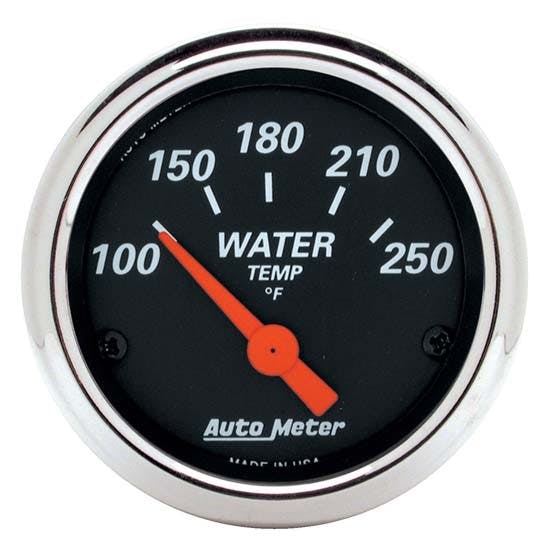

AutoMeter 1436 Designer Black Air-Core Water Temperature Gauge
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
See More
$68.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 2-1/16" Gauge Diameter, Black, Lighted
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 100-250 °F gauge range
See more details
Key Specs
| MFG. Part # | 1436 |
| Brand | AutoMeter |
| Gauge Diameter | 2-1/16" |
| Gauge Range | 100-250 °F |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 1436 Details
AutoMeter 1436 Details
A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. Auto Meter's advanced 1/8" NPT temperature transducer is included for a simple installation on any application.
- Includes bulb and socket assembly with red and green bulb covers
- Includes 1/8" NPT Sender and 3/8" NPT and 1/2" NPT adapter/fittings
- Features Air-Core meter movement
- Includes gauge mounting hardware and installation instructions
Ships with the following AutoMeter products:
Sending Unit(s): 2258
Adapters/Fittings: 3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 2230
Ships with the following AutoMeter products:
Sending Unit(s): 2258
Adapters/Fittings: 3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 2230
Charts
Guides & Documents
AutoMeter 1436 Specifications
AutoMeter 1436 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1436 |
| Brand | AutoMeter |
| Gauge Diameter | 2-1/16" |
| Gauge Range | 100-250 °F |
| GENERAL | |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Face Color | Black |
| Needle Color | Fluorescent Red |
| Lighted | Yes |
| Bezel Finish | Chrome |
| Bezel Style | Street Rod |
| Light Color | White Incandescent |
| Sending Unit Included | Yes |
| Included Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Lighting Type | Incandescent |
| Includes Bulb and Socket | Yes |
| Includes Light Covers | Yes |
| Includes Mounting Bracket(s) | Yes |
| GTIN Code | 046074014369 |
| Sold in Quantity | Each |
