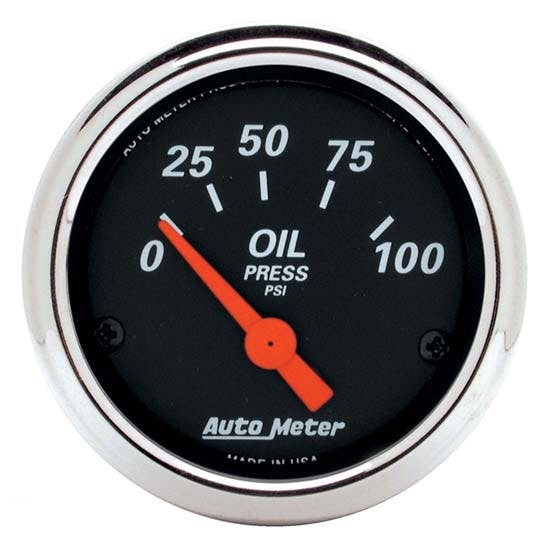

AutoMeter 1426 Designer Black Air-Core Oil Press. Gauge,2-1/16

Name: AutoMeter 1426 Designer Black Air-Core Oil Press. Gauge,2-1/16
Brand: AutoMeter
SKU: 1821426
Price: 86.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

Traditional incandescent lighting illuminates around the perimeter of the dial
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

$86.99

each

In Stock

$101.99

Save $15.00

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2-1/16" Gauge Diameter, Black

Traditional incandescent lighting illuminates around the perimeter of the dial
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

See more details

Key Specs

MFG. Part #	1426
Brand	AutoMeter
Gauge Diameter	2-1/16"
Gauge Style	Electric
Gauge Range	0-100 psi

See more specs

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AutoMeter 1426 Details

Quite possibly the most critical vital to monitor, engine oil pressure can mean the difference between making it home and needing to replace the engine. The patented air core meter movement provides the durability and accuracy that you expect from the Auto Meter name. Throughout 57 years of building the world's best competition instruments, this meter movement has been the engine powering the machine that sets the benchmark. A single wire, 1/8" NPT oil pressure sender is included.

Includes bulb and socket assembly with red and green bulb covers
Includes 1/8" NPT Sender and 1/8" NPT to 1/4" NPT adapter/fitting
Features Air-Core meter movement
Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Sending Unit(s):  2242
Adapters/Fittings:  3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  2230

Ships with the following AutoMeter products:

Sending Unit(s):  2242
Adapters/Fittings:  3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  2230

Charts

Installation Instructions (PDF)

Guides & Documents

Oil Pressure Gauges Instruction Sheet (1821426)

CA Prop 65

AutoMeter 1426 Specifications

KEY SPECS
MFG. Part #	1426
Brand	AutoMeter
Gauge Diameter	2-1/16"
Gauge Style	Electric
Gauge Range	0-100 psi

GENERAL
Gauge Series	Analog
Sending Unit Included	Yes
Gauge Face Color	Black
Needle Color	Fluorescent Red
Lighting Type	Incandescent
Light Color	White Incandescent
Overall Diameter	2-1/16"
Bezel Finish	Chrome
Sold in Quantity	Each
Bezel Style	Street Rod
Included Adapter/Fitting	3/8" NPT and 1/2" NPT adapter fittings
Includes Bulb and Socket	Yes
Includes Light Covers	Yes
Includes Mounting Bracket(s)	Yes
GTIN Code	046074014260
