Product Summary

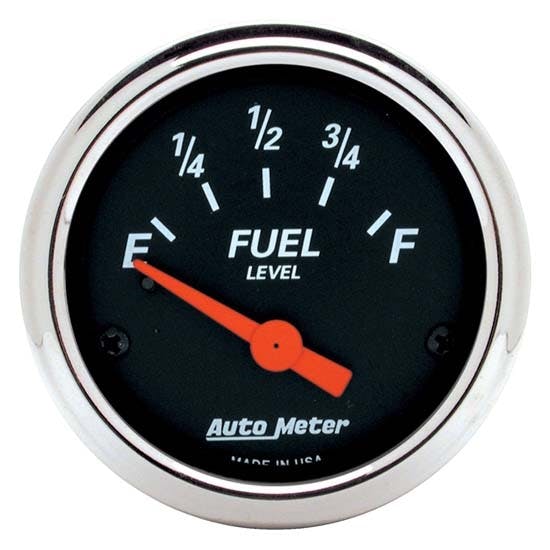

Universal Fit, 2.06" Body Diameter, Electric Gauge Type

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most Pre-1965 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Rebates Available

Key Specs

MFG. Part #1425
Overall Diameter2-1/16"
Body Diameter2.06"
Ohm Range0 ohms empty, 30 ohms full
Gauge TypeElectric

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 4 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's) # 1422 182-1422, 0-30 ohm (early GM) # 1425 182-1425, 73-10 ohm (pre 90's Ford and Chrysler) # 1423 182-1423, and 240-33 ohm (aftermarket senders such as the Auto Meter 3262) # 1424 182-1424. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

  • Includes bulb and socket assembly with red and green bulb covers
  • Works with most Pre-1965 Chevrolet/GM senders
  • 0 ohm empty / 30 ohm full
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions

Ships with the following AutoMeter products:

Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  2230

Ships with the following AutoMeter products:

Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  2230

Charts

Rebates

Cash For Your Dash AutoMeter Rebate

AutoMeter wants to help make everyone's money go a little farther with great savings on their "Cash For Your Dash" rebate. Up to $150 back on qualifying purchases available on thousands of AutoMeter brands, minimum of $100 purchase required. Purchases must be made between May 1, 2022 and June 30, 2022. Restrictions apply see rebate form for more details. Rebates must be post-marked by July 31, 2022.

Specifications

KEY SPECS
MFG. Part #1425
BrandAutoMeter
Overall Diameter2-1/16"
Body Diameter2.06"
Ohm Range0 ohms empty, 30 ohms full
Gauge TypeElectric
GENERAL
Gauge RangeEmpty/Full
LightedYes
Gauge Face ColorBlack
Needle ColorFluorescent Red
Bezel FinishChrome
Sold in QuantityEach
NotesGauge, Fuel Level, 2 1/16", 0OE to 30OF, Elec, Designer Black
Lighting TypeIncandescent
Light ColorWhite Incandescent
Includes Bulb and SocketYes
Includes Light CoversYes
Includes Mounting Bracket(s)Yes
GTIN Code046074014253
Mount Hole Size2.0625"
