#1821424

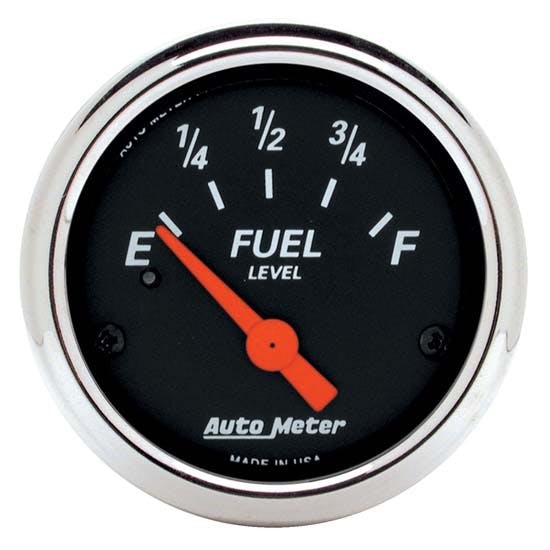

AutoMeter 1424 Designer Black Air-Core Fuel Level Gauge, 2-1/16
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with 240E/33F ohm senders, including AutoMeter 3262
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
See More
$61.99
each
Factory Shipped
$62.99
Save $1.00
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 16th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 2.06" Body Diameter, Electric Gauge Type
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with 240E/33F ohm senders, including AutoMeter 3262
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings
See more details
Key Specs
| MFG. Part # | 1424 |
| Brand | AutoMeter |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAutoMeter 1424 Details
AutoMeter 1424 Details
One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 4 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's) # 1422 182-1422, 0-30 ohm (early GM) # 1425 182-1425, 73-10 ohm (pre 90's Ford and Chrysler) # 1423 182-1423, and 240-33 ohm (aftermarket senders such as the Auto Meter 3262) # 1424 182-1424. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Includes bulb and socket assembly with red and green bulb covers
- Works with 240E/33F ohm senders, including Auto Meter 3262
- 240 ohm empty / 33 ohm full
- Features Air-Core meter movement
- Includes gauge mounting hardware and installation instructions
Ships with the following AutoMeter products:
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 2230
Ships with the following AutoMeter products:
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 2230
Charts
Guides & Documents
AutoMeter 1424 Specifications
AutoMeter 1424 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1424 |
| Brand | AutoMeter |
| GENERAL | |
| Overall Diameter | 2-1/16" |
| Body Diameter | 2.06" |
| Ohm Range | 240 ohms empty, 33 ohms full |
| Gauge Type | Electric |
| Gauge Range | Empty/Full |
| Lighted | Yes |
| Gauge Face Color | Black |
| Needle Color | Fluorescent Red |
| Bezel Finish | Chrome |
| Sold in Quantity | Each |
| Notes | Gauge, Fuel Level, 2 1/16", 240OE to 33OF, Elec, Designer Black |
| Lighting Type | Incandescent |
| Light Color | White Incandescent |
| Includes Bulb and Socket | Yes |
| Includes Light Covers | Yes |
| Includes Mounting Bracket(s) | Yes |
| GTIN Code | 046074014246 |
| Mount Hole Size | 2.0625" |
