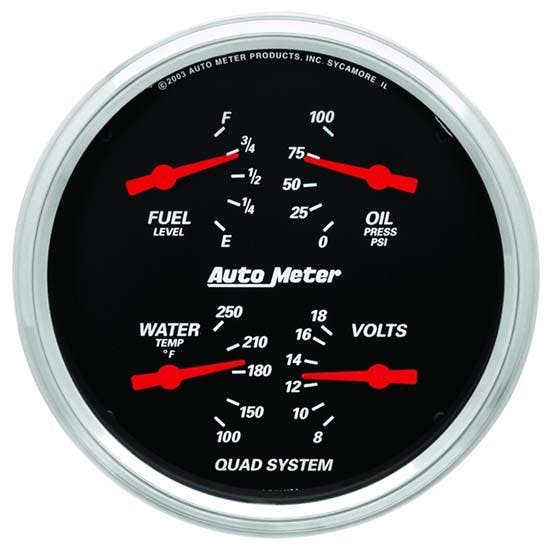

AutoMeter 1419 Designer Black Air-Core Quad Gauge, 5 Inch

Ask a Question

Traditional incandescent lighting illuminates around the perimeter of the dial
4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system

$235.99

Factory Shipped

$243.99

Save $8.00

This part will be shipped by the manufacturer. We estimate this item will ship on or before September 27th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Black, Chrome, White Incandescent

Traditional incandescent lighting illuminates around the perimeter of the dial
4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Gauge kit includes 1/8” NPT pressure sender, 1/4” NPT adapter, 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

See more details

Key Specs

MFG. Part #	1419
Brand	AutoMeter

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

AutoMeter 1419 Details

Sometimes space is limited. The Auto Meter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual Auto Meter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60's through mid 90's GM fuel level senders).

Includes bulb and socket assembly with red and green bulb covers

Ships with the following AutoMeter products:

Sending Unit(s):  Oil Sender 2242 - Water Sender 2258
Adapters/Fittings:  3/8" NPT and 1/2" NPT adapter fittings
Bulb & Socket:  3220
Light Covers:  Red 3214 & Green 3215
Mounting Hardware:  Bracket Included

Ships with the following AutoMeter products:

Charts

Installation Instructions (PDF)

Guides & Documents

Gauge Sets Instruction Sheet (1821419)

CA Prop 65

AutoMeter 1419 Specifications

KEY SPECS
MFG. Part #	1419
Brand	AutoMeter

GENERAL
Gauge Face Color	Black
Bezel Finish	Chrome
Lighting Type	Incandescent
Light Color	White Incandescent
Needle Color	Fluorescent Red
Bezel Style	Street Rod
Gauge Range	100 PSI/100-250 °F/8-18V/0OE-90OF
Overall Diameter	5"
Included Adapter/Fitting	3/8" NPT and 1/2" NPT adapter fittings
Includes Bulb and Socket	Yes
Includes Light Covers	Yes
Includes Mounting Bracket(s)	Yes
Sending Unit Included	Yes
GTIN Code	046074014192
Notes	Gauge, Quad, 5", 0OE-90OF, Elec, Designer Black
Sold in Quantity	Each
