Part # 1821409

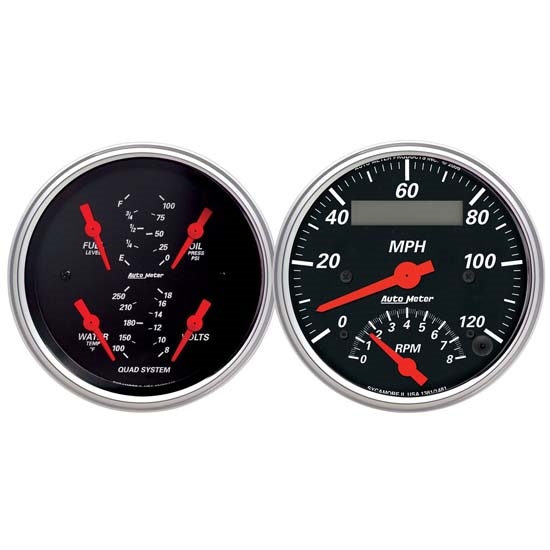

AutoMeter 1409 Designer Black Air-Core 2 Piece Gauge Kit, 3-3/8

by

|

  • Traditional incandescent lighting illuminates around the perimeter of the dial

$550.65

each

Factory Shipped

$774.04

Save $223.39

This part will be shipped by the manufacturer. We estimate this item will ship on or before November 15th.


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Black, Chrome, White Incandescent

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8”, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.

Key Specs

MFG. Part #1409
Gauge Face ColorBlack
Bezel FinishChrome
Lighting TypeIncandescent
Light ColorWhite Incandescent

Need To Know

This Product Will Ship Free

Need help? Call 800.979.0122

Quick and Easy Returns

Details

Sometimes space is limited. The Auto Meter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual Auto Meter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8" NPT temperature sender and a 1/8" NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with Auto Meter's 3262 fuel level sender).
  • Includes bulb and socket assembly with red and green bulb covers

Charts

Specifications

KEY SPECS
MFG. Part #1409
BrandAutoMeter
Gauge Face ColorBlack
Bezel FinishChrome
Lighting TypeIncandescent
Light ColorWhite Incandescent
GENERAL
Needle ColorFluorescent Red
Bezel StyleStreet Rod
Gauge Range8K RPM/120 MPH/100 PSI/100-250 °F/8-18V/240OE-33OF
Overall Diameter3-3/8"
Included Adapter/Fitting1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings.
Includes Bulb and SocketYes
Includes Light CoversYes
Includes Mounting Bracket(s)Yes
Sending Unit IncludedYes
GTIN Code046074014093
NotesGauge Kit, 2 pc., Quad & Tach/Speedo, 3 3/8", Designer Black
Sold in QuantityKit
