Part # 1821318

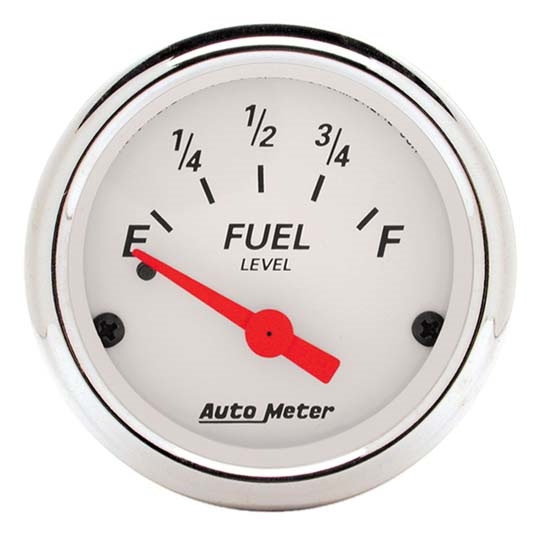

AutoMeter 1318 Arctic White Air-Core Fuel Level Gauge

by

|

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most Pre-1965 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system

$58.99

each

In Stock

$63.21

Save $4.22


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, 2.06" Body Diameter, Electric Gauge Type

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most Pre-1965 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Key Specs

MFG. Part #1318
Overall Diameter2-1/16"
Body Diameter2.06"
Ohm Range0 ohms empty, 30 ohms full
Gauge TypeElectric

Need To Know

Free Shipping on Orders Over $99

Need help? Call 800.979.0122

Quick and Easy Returns

Details

One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's) 182-1315, 0-30 ohm (early GM) 182-1318, 73-10 ohm (pre 90's Ford and Chrysler) 182-1316, and 240-33 ohm (aftermarket senders such as the Auto Meter 182-3262182-1317. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

  • Includes bulb and socket assembly with red and green bulb covers
  • Works with most Pre-1965 Chevrolet/GM senders
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions

Charts

Specifications

KEY SPECS
MFG. Part #1318
BrandAutoMeter
Overall Diameter2-1/16"
Body Diameter2.06"
Ohm Range0 ohms empty, 30 ohms full
Gauge TypeElectric
GENERAL
Gauge RangeEmpty/Full
LightedYes
Gauge Face ColorWhite
Needle ColorFluorescent Red
Bezel FinishChrome
Sold in QuantityEach
NotesGauge, Fuel Level, 2 1/16", 0OE to 30OF, Elec, Arctic White
Lighting TypeIncandescent
Light ColorWhite Incandescent
Includes Bulb and SocketYes
Includes Light CoversYes
Includes Mounting Bracket(s)Yes
GTIN Code046074013188
Mount Hole Size2.0625"
