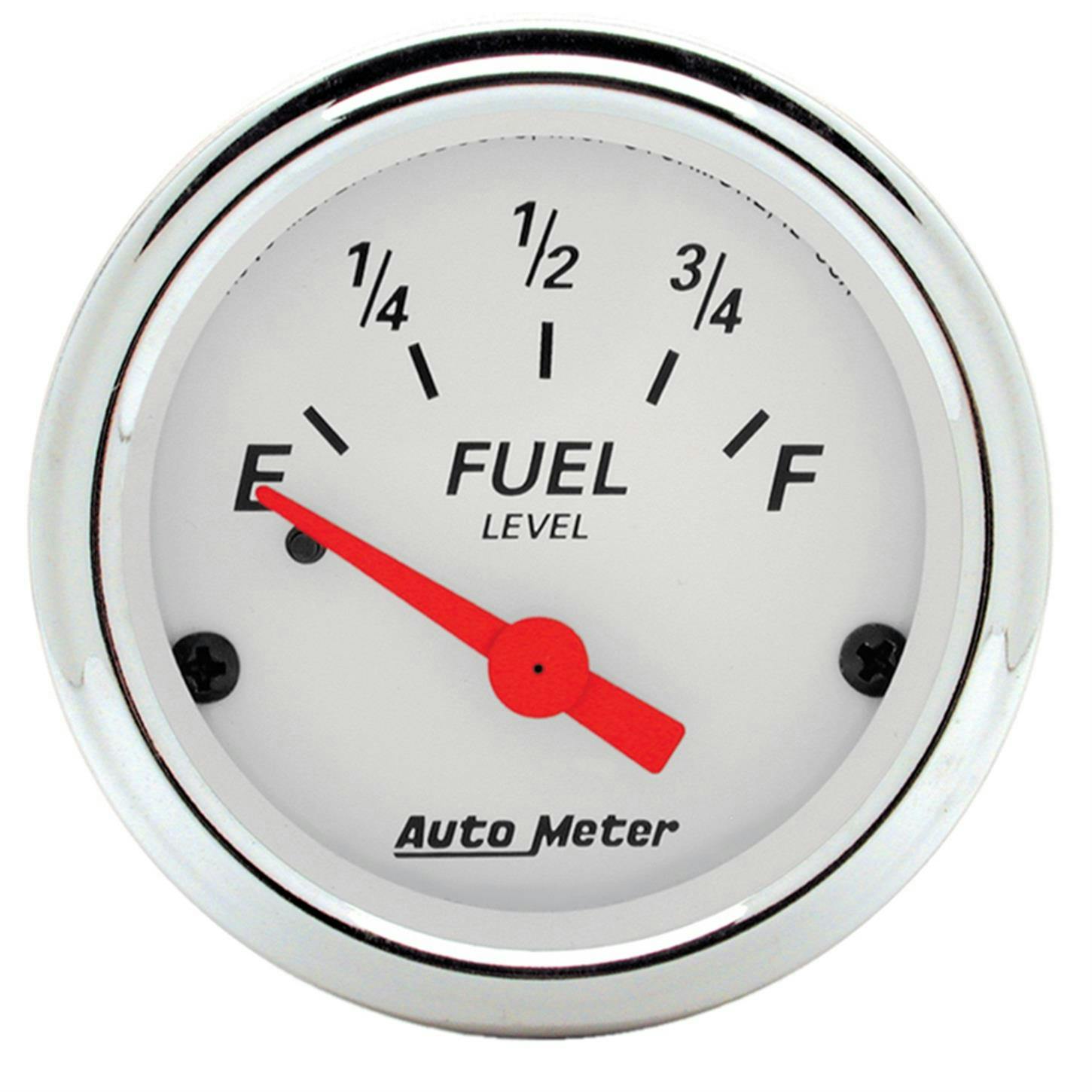

AutoMeter 1315 Arctic White Air-Core Fuel Level Gauge
Universal Fit, 2.06" Body Diameter, 0 ohms empty, 90 ohms full Ohm Range, Electric Gauge Type
One of the most necessary gauges in a dashboard, Auto Meter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's) 182-1315, 0-30 ohm (early GM) 182-1318, 73-10 ohm (pre 90's Ford and Chrysler) 182-1316, and 240-33 ohm (aftermarket senders such as the Auto Meter 182-3262) 182-1317. Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Includes bulb and socket assembly with red and green bulb covers
- Works with most 1965 to 1997 Chevrolet/GM senders
- Features Air-Core meter movement
- Includes gauge mounting hardware and installation instructions
Ships with the following AutoMeter products:
Bulb & Socket: 3220
Light Covers: Red 3214 & Green 3215
Mounting Hardware: 2230
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
