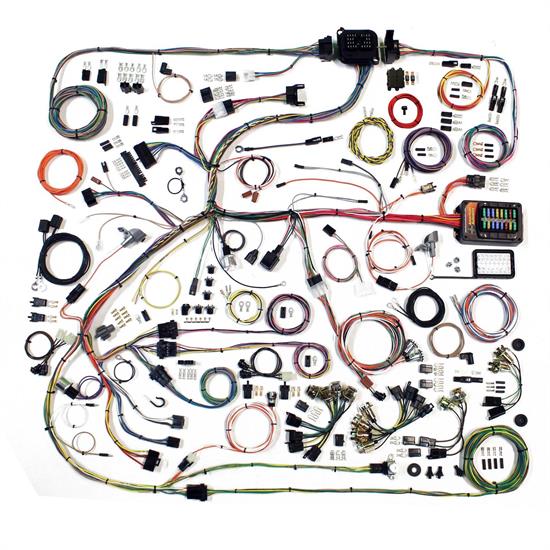

American Autowire 510634 Classic Update Kit, 1968-70 Mopar B-Body

#910510634

American Autowire 510634 Classic Update Kit, 1968-70 Mopar B-Body

Name: American Autowire 510634 Classic Update Kit, 1968-70 Mopar B-Body
Brand: American Autowire
SKU: 910510634
Price: 1517.15 USD
Availability: LimitedAvailability
Rating: 5 (2 reviews)

2 Reviews

Ask a Question

$1,517.15

/each

In Stock

Order soon, only 1 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Charger, Coronet, GTX, Roadrunner, Satellite

See more details

Key Specs

MFG. Part #	510634
Number of Circuits	16
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Column or Dash

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

American Autowire 510634 Details

Classic Update kits are researched and developed to be the highest quality and most complete vehicle-specific modified restoration harnesses available today. Engineered to provide plenty of room for customization while taking the tedious parts out of the wiring job. Get a head start on your wiring project today!

Classic Wiring Kit Fits:

1968-70 Dodge Charger
1968-70 Dodge Coronet
1968-70 Dodge Super Bee
1968-70 Plymouth GTX
1968-70 Plymouth Road Runner
1968-70 Plymouth Satelite

Classic Wiring Kit Features:

A replacement headlight switch with internal 25-amp circuit breaker, adjustable length shaft, and custom knob.
Standard turn signal flasher, hazard flasher, and horn relay mounted on harness.
Fuse box designed to fit in original location with mods to the firewall, template included. All required hardware supplied. New ATO fuse panel allows for easy fuse and circuit breaker accessibility. Harness is laid out and formed to allow for nearly all after market accessories such as; gauge packages, wiper systems, heat and air conditioning systems, etc.
Many original switch connector bodies an American Autowire exclusive feature.
Steering column connectors can plug directly into most aftermarket steering columns or stock ‘67-‘75 Mopar columns using the adapter and terminals included in the kit.
Separate under dash courtesy lamp assemblies are also included for use along with your original dome/interior lighting feeds.
Instrument Cluster wiring is designed with a “cluster harness disconnect” system for easy service and assembly. Original style terminals, lamp sockets, connectors, and locking nuts that will attach to the original cluster (another American Autowire exclusive) are provided for stock cluster connections. The system will also connect into most popular aftermarket gauges such as CLASSIC INSTRUMENTS, DAKOTA DIGITAL, AUTOMETER, VDO, and others.
Rear body harness assembly plugs into the main harness in the stock location and our longer leads allow for stock or custom routing of the wires. Rear body wiring includes backup light lead wires with correct lamp sockets or connectors, stop and tail light lead wires with correct lamp sockets, dome light leads, terminals, connectors and lamp sockets to mate with the license plate lamp and side marker assemblies, and fuel tank sender wire with trunk grommet and tank connection.
New floor dimmer switch is provided for ease of installation. Wire length and connection accommodate original floor mount dimmer switch.
GM bulkhead connectors for the engine and front light wiring are included (another American Autowire exclusive) and allow for easy installation with original or custom routing.
Engine wiring includes connectors for original points type distributors, OEM Chrysler style starter relay connections, tach and ignition leads, etc. High-powered 1-wire alternator connections are supplied.
Front lighting includes extra long leads that can be routed for stock or optional applications. All head light, parking light, and directional light leads, along with a switched trigger wire for an electric fan relay (usually recommended with AC) are provided. Mating terminals and connectors are also provided for you to complete your custom installation.
Many original style light sockets, switch body connectors, terminals, etc.

Charts

1968-70 Mopar B-Body Classic Update Kit First Design Instructions (PDF)

1968-70 Mopar B-Body Classic Update Kit Second Design Instructions (PDF)

Guides & Documents

Chassis Wiring Harnesses Installation Instructions (910510634)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

American Autowire 510634 Specifications

KEY SPECS
MFG. Part #	510634
Brand	American Autowire
Number of Circuits	16
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Column or Dash

GENERAL
Fuse Style	ATO/ATC
Harness Length	Standard
Sold in Quantity	Kit
