American Autowire 510289 Classic Update Kit, 1970-74 Mopar E-Body

#910510289

American Autowire 510289 Classic Update Kit, 1970-74 Mopar E-Body

Name: American Autowire 510289 Classic Update Kit, 1970-74 Mopar E-Body
Brand: American Autowire
SKU: 910510289
Price: 1279.65 USD
Availability: InStock

Write a Review

Ask a Question

$1,279.65

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

70-74 Dodge Challenger, 70-74 Plymouth Barracuda

See more details

Key Specs

MFG. Part #	510289
Number of Circuits	18
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Column

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

American Autowire 510289 Details

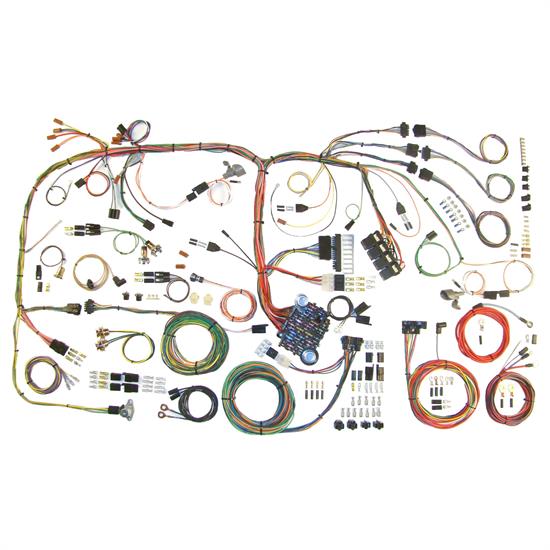

Classic Updates are researched and developed to be the highest quality and most complete vehicle-specific modified restoration harnesses available today. Engineered to provide plenty of room for customization while taking the tedious parts out of the wiring job. Get a head start on your wiring project today!

Classic Wiring Kit Fits:

1970-74 Plymouth Cuda
1970-74 Dodge Challenger

Classic Wiring Kit Features:

A replacement headlight switch with internal 30 amp circuit breaker, adjustable length shaft, and custom knob.
Standard turn signal flasher, hazard flasher, and horn relay mounted on harness.
NEW compact ATO-Style fuse panel that is fully encased in a closed box assembly with two mounting pads (mounting hardware included). The fuse coverlid is labeled on the inside identifying all circuits by description and their respective fuse ratings. All high amperage output circuits incorporate the same superior spring steel reinforced terminals that are used in our Highway Series kits.
Harness is laid out and formed to allow for nearly all after market accessories such as; gauge packages, wiper systems, heat and air conditioning systems, etc.
Original switch connector bodies - an American Autowire exclusive feature.
Steering column connectors can plug directly into most aftermarket steering columns or stock columns using the adapter and terminals included in the kit.
Separate under dash courtesy lamp assemblies are also included for use along with your original dome/interior lighting feeds.
Instrument Cluster wiring is designed with a 'cluster harness disconnect' system for easy service and assembly. Original terminals and connectors (another American Autowire exclusive) are provided for stock cluster connections. The system will also connect into most popular aftermarket gauges such as AUTOMETER, CLASSIC INSTRUMENTS, STEWART WARNER, VDO, and others.
Rear body harness assembly plugs into the main harness at the left kick panel location and our longer leads allow for stock or custom routing of the wires. Rear body wiring includes backup light lead wires and connectors along with stop and tail light lead wires and connectors to mate into the stock Ford tail and back up lamp pigtail assemblies. A license plate lamp lead connection, as well as a fuel tank sender wire with tank unit connection is also included.
New floor dimmer switch is provided for ease of installation. Wire length and connection accommodate original floor mount dimmer switch.
Engine wiring includes feeds for coil, tach, water temperature, oil pressure, electric choke, and electric speedometer (if needed). A heavy gauge alternator feed and fusible link are also included for any typical high output 1 wire or internally regulated alternator. Connectors supplied for power and tach leads for GM style H.E.I. distributors along with various oil and temp senders.
Front lighting includes extra long leads that can be routed for stock or optional appearances. All head light, parking light, and directional light leads, along with a switched trigger wire for an electric fan relay (usually recommended with AC) are provided. Mating terminals and connectors are also provided for you to complete your custom installation.

Charts

Classic Update Series Instruction Sheet (PDF)

AAW Warning Sheet (PDF)

Alternator and Main Power Connection Kit (PDF)

Courtesy Light Connection Kit (PDF)

Dash Cluster Wiring Kit (PDF)

Dash Kit (PDF)

Dimmer Switch (PDF)

Engine Wiring Kit (PDF)

Firewall Modification Template (PDF)

Front Light Wiring Kit (PDF)

Rear Body Wiring Kit (PDF)

Guides & Documents

Chassis Wiring Harnesses Installation Instructions (910510289)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

American Autowire 510289 Specifications

KEY SPECS
MFG. Part #	510289
Brand	American Autowire
Number of Circuits	18
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Column

GENERAL
Fuse Style	ATO/ATC
Harness Length	Standard
Sold in Quantity	Kit
