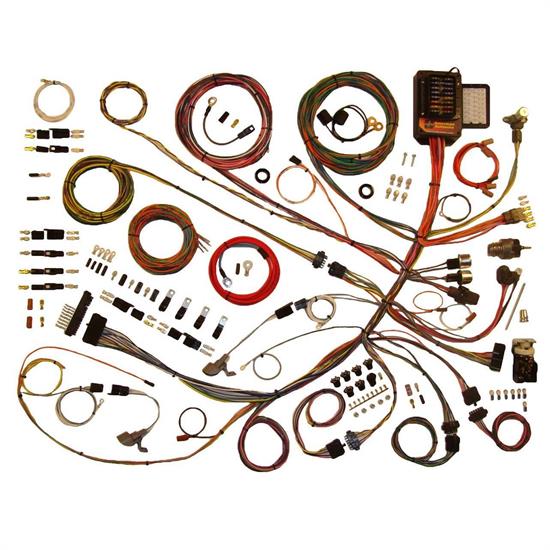

American Autowire 510260 Classic Update Kit, 1961-66 Ford Truck

#910510260

American Autowire 510260 Classic Update Kit, 1961-66 Ford Truck

Name: American Autowire 510260 Classic Update Kit, 1961-66 Ford Truck
Brand: American Autowire
SKU: 910510260
Price: 930.05 USD
Availability: LimitedAvailability
Rating: 5 (1 reviews)

1 Review

Ask a Question

$930.05

/each

In Stock

Order soon, only 3 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

61-66 Ford F-100, 61-66 Ford F-250, 61-66 Ford F-350

See more details

Key Specs

MFG. Part #	510260
Number of Circuits	16
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Dash

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

American Autowire 510260 Details

Classic Updates are researched and developed to be the highest quality and most complete vehicle-specific modified restoration harnesses available today. Engineered to provide plenty of room for customization while taking the tedious parts out of the wiring job. Get a head start on your wiring project today!

Classic Wiring Kit Fits:

1961-66 Ford Truck

Classic Wiring Kit Features:

Will accommodate 2 wheel or 4 wheel drive body applications.
A replacement headlight switch with internal 30 amp circuit breaker, adjustable length shaft, and custom knob.
Standard turn signal flasher, hazard flasher, and horn relay mounted on harness.
NEW compact ATO-Style fuse panel that is fully encased in a closed box assembly with two mounting pads (mounting hardware included). The fuse coverlid is labeled on the inside identifying all circuits by description and their respective fuse ratings. All high amperage output circuits incorporate the same superior spring steel reinforced terminals that are used in our Highway Series kits.
Harness is laid out and formed to allow for nearly all after market accessories such as; gauge packages, wiper systems, heat and air conditioning systems, etc.
Original switch connector bodies - an American Autowire exclusive feature.
Steering column connectors can plug directly into most aftermarket steering columns or stock 1961-66 Ford columns using the adapter and terminals included in the kit.
Separate under dash courtesy lamp assemblies are also included for use along with your original dome/interior lighting feeds.
Instrument Cluster wiring is designed with a 'cluster harness disconnect' system for easy service and assembly. Original terminals and connectors (another American Autowire exclusive) are provided for stock cluster connections. The system will also connect into most popular aftermarket gauges such as AUTOMETER, CLASSIC INSTRUMENTS, STEWART WARNER, VDO, and others.
Rear body harness assembly plugs into the main harness at the left kick panel location and our longer leads allow for stock or custom routing of the wires. Rear body wiring includes backup light lead wires and connectors along with stop and tail light lead wires and connectors to mate into the stock Ford tail and back up lamp pigtail assemblies. A license plate lamp lead connection, as well as a fuel tank sender wire with tank unit connection is also included.
New floor dimmer switch is provided for ease of installation. Wire length and connection accommodate original floor mount dimmer switch.
Engine wiring includes feeds for coil, tach, water temperature, oil pressure, electric choke, and electric speedometer (if needed). A heavy gauge alternator feed and fusible link are also included for any typical high output 1 wire or internally regulated alternator. Connectors supplied for power and tach leads for GM style H.E.I. distributors along with various oil and temp senders. A Ford Gen III series alternator adapter is available separately.
Front lighting includes extra long leads that can be routed for stock or optional appearances. All head light, parking light, and directional light leads, along with a switched trigger wire for an electric fan relay (usually recommended with AC) are provided. Mating terminals and connectors are also provided for you to complete your custom installation.
New ignition switch with indexed connector included.

Charts

Instruction Sheet (PDF)

AAW Warning Sheet (PDF)

Alternator and Main Power Connection Kit (PDF)

Dash Cluster Wiring Kit (PDF)

Dimmer Switch (PDF)

Grommet and Parts Kit (PDF)

Headlight Switch (PDF)

Ignition Switch (PDF)

Rear Body Wiring Kit (PDF)

Guides & Documents

Chassis Wiring Harnesses Installation Instructions (910510260)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

American Autowire 510260 Specifications

KEY SPECS
MFG. Part #	510260
Brand	American Autowire
Number of Circuits	16
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Dash

GENERAL
Fuse Style	ATO/ATC
Harness Length	Extra-Long
Sold in Quantity	Kit

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

I would buy another wiring kit if I have another project

5.0

4 years ago

Snoopy

Tennessee

Verified

Used to rewire my 1965 Ford F100. Higher cost is well worth it because it includes firewall grommets, new upgraded switches and highly detailed wiring diagrams and installation information. Unlike universal kits, I didn't have to splice new wiring to old switches and sections of old harness and includes additional circuits capable of upgrading other items for the truck. Technical assistance was readily available and valuable.

Would Recommend

Showing 1 of 1 reviews
