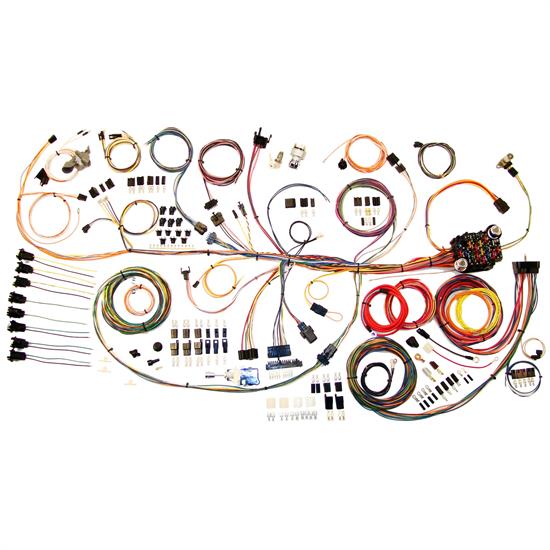

American Autowire 510188 Classic Update Kit, 1964-67 Pontiac GTO

#910510188

American Autowire 510188 Classic Update Kit, 1964-67 Pontiac GTO

Name: American Autowire 510188 Classic Update Kit, 1964-67 Pontiac GTO
Brand: American Autowire
SKU: 910510188
Price: 930.05 USD
Availability: LimitedAvailability

Write a Review

Ask a Question

$930.05

/each

In Stock

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

64-67 Pontiac GTO, 18 Number of Circuits

See more details

Key Specs

MFG. Part #	510188
Number of Circuits	18
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Dash

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

American Autowire 510188 Details

Classic Updates are researched and developed to be the highest quality and most complete vehicle-specific modified restoration harnesses available today. Engineered to provide plenty of room for customization while taking the tedious parts out of the wiring job. Get a head start on your wiring project today!

Classic Wiring Kit Fits:

1964-67 Pontiac GTO
1964-67 Pontiac Lemans
1964-67 Pontiac Tempest

Complete Wiring Kit Features:

New headlight switch with internal 30amp circuit breaker, retention collar nut, adjustable length shaft, and custom knob.
Standard turn signal flasher, hazard flasher and horn relay mounted on harness.
NEW compact ATO-Style fuse panel that is fully encased in a closed box assembly with two mounting pads. The fuse coverlid is labeled on the inside identifying all circuits by description and their respective fuse ratings. All high amperage output circuits incorporate the same superior spring steel reinforced terminals that are used in our Highway Series kits. This kit also utilizes a remote bulkhead assembly that mounts in the stock location. All required hardware supplied. Harness is laid out and formed to allow for nearly all after market accessories such as; gauge packages, wiper systems, heat and air conditioning systems, etc.
Original switch connector bodies an American Autowire exclusive feature.
Steering column connectors can plug directly into most aftermarket steering columns or stock GM columns that use stock GM turn signal switches.
Separate under dash courtesy lamps for use along with your original dome/interior lighting.
Instrument Cluster wiring is designed with a cluster harness disconnect system for easy service and assembly. Original terminals, connectors (another American Autowire exclusive), and light sockets are supplied for stock cluster connections. The system will also connect into most popular aftermarket gauges such as AUTOMETER, CLASSIC INSTRUMENTS, DAKOTA DIGITAL, STEWART WARNER, VDO and others.
Rear body harness assembly plugs into the main harness in the stock location and our longer leads allow for stock or custom routing the wires. Rear body wiring includes backup lamp, stop, turn and tail lamp lead wires along with their correct light sockets, license plate lamp connection wire, and fuel tank sender wire and connection along with the proper trunk floor grommet.
New floor dimmer switch is provided. Wire length and connection accommodate original floor mount dimmer switch.
New ignition switch, tumbler and key are provided.
GM bulkhead connectors for the engine and front light wiring are included (another American Autowire exclusive) and allow for easy installation with original or custom routing.
Engine wiring includes connectors for original points type as well as H.E.I. distributors. Power and tach connectors supplied for GM H.E.I. distributors. Alternator connectors are supplied for GM SI series internally regulated alternators. GM CS series alternator adapter is available separately.
Front lighting includes extra long leads that can be routed for stock or optional appearances. All headlight, park light and directional light connectors and terminals are provided along with a switched trigger wire for an electric fan relay (usually recommended with AC).
Original style light sockets, connectors, terminals, etc. packed into every aspect of this harness, it makes it the most complete system of its type in the industry!

Charts

1964-67 Pontiac GTO Classic Update Kit First Design Instructions (PDF)

1964-67 Pontiac GTO Classic Update Kit Second Design Instructions (PDF)

Guides & Documents

Chassis Wiring Harnesses Installation Instructions (910510188)

CA Prop 65

American Autowire 510188 Specifications

KEY SPECS
MFG. Part #	510188
Brand	American Autowire
Number of Circuits	18
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Dash

GENERAL
Fuse Style	ATO/ATC
Harness Length	Standard
Sold in Quantity	Kit

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1959-1966 Pontiac Bonneville

389 Pontiac V8

1959-1966 Pontiac Catalina

389 Pontiac V8

1962-1966 Pontiac Grand Prix

389 Pontiac V8

1964-1966 Pontiac GTO

389 Pontiac V8

1963-1966 Pontiac LeMans

389 Pontiac V8

1959-1966 Pontiac Star Chief

389 Pontiac V8

1961-1966 Pontiac Tempest

389 Pontiac V8

1960-1961 Pontiac Ventura

389 Pontiac V8
