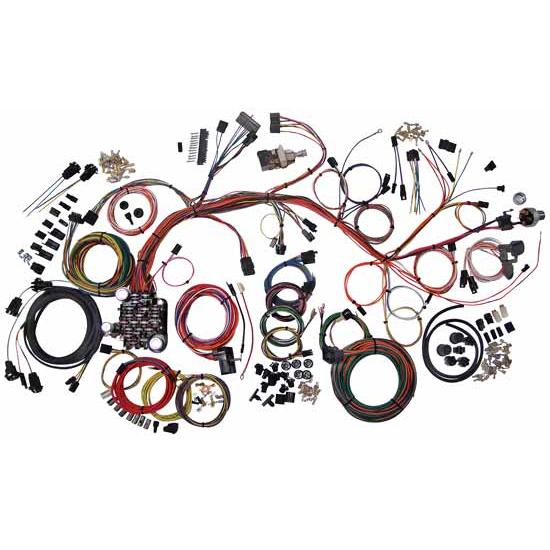

American Autowire 510063 1961-64 Chevy Impala OEM Style Wiring Harness

Name: American Autowire 510063 1961-64 Chevy Impala OEM Style Wiring Harness
Brand: American Autowire
SKU: 91051034
Price: 759.05 USD
Availability: InStock
Rating: 5 (6 reviews)

6 Reviews

3 Questions

Harness is designed to hook up to your stock or aftermarket gauges
Allows you to rewire your car the way you want without the pain
Contains fuse block, wiring harnesses, and terminals

$759.05

each

In Stock

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

61-64 Chevy Impala, 18 Number of Circuits

Harness is designed to hook up to your stock or aftermarket gauges
Allows you to rewire your car the way you want without the pain
Contains fuse block, wiring harnesses, and terminals
Includes a replacement headlight switch with internal 30amp circuit breaker
Steering column connectors will plug directly into most after market steering columns as well as 1961-1964 GM columns

See more details

Key Specs

MFG. Part #	510063
Number of Circuits	18
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Dash

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Chassis Wiring Harnesses Instruction Sheet (91051034)

Installation Tips

Replacement headlight switch with internal 30amp circuit breaker included. Retention collar nut, adjustable length shaft, and custom knob are also included.
Standard turn signal flasher, hazard flasher mounted on fuse panel, and horn relay mounted on harness.
Fuse box designed to fit in original location. All required hardware supplied. New ATO fuse panel allows for easy fuse and circuit breaker accessibility.
Original switch connector bodies.
Steering column connectors will plug directly into most after market steering columns as well as 1961-1964 GM columns, which utilize stock GM turn signal switches.
Along with wiring for your original dome/interior lighting we have included separate under dash light sockets.
Instrument Cluster wiring is designed with a “cluster harness disconnect” system for easy service and assembly. All original terminals, connectors and light sockets are also supplied for original cluster gauges. However, the best aspect of the disconnect system is that any gauge cluster package can be easily and neatly wired in, including AUTOMETER, CLASSIC INSTRUMENTS, DAKOTA DIGITAL, STEWART WARNER, and VDO just to name a few.
Rear body harness assembly is designed to plug into the main harness in the original location. Flexibility in harness design allows for original or custom routing. Rear body wiring includes backup light lead wires with correct light sockets, stop and tail light lead wires with correct light sockets, license plate lead wires, and fuel tank sender wire and connection. In addition, a complete preassembled trunk lid harness is also included at no extra charge!
New floor dimmer switch is provided. Wire length and connection accommodate original floor mount dimmer switch.
GM bulkhead connectors for the engine and front light wiring are included and ready for easy installation. Original or custom routing of the new harness is no problem!
Engine wiring includes connectors for original points type as well as H.E.I. distributors. Power and tach connectors supplied for GM H.E.I. distributors. Alternator connectors are supplied for GM “SI” series internally regulated alternators. GM “CS” series alternator adapter is available separately.
Front lighting includes extra long leads for special routing when custom under hood appearance is desired. All headlight, park light and directional light connectors and terminals are provided, as well as a switched trigger wire for electric fan relay (usually recommended with AC).
You will find that with our inclusion all the original style light sockets, connectors, terminals, etc. packed into every aspect of this harness, it makes it the most complete system of its type in the industry!
Color schematics and easy to understand installation instructions included.
For your information, there were 9 different windshield wiper/washer configurations that were used between 1961 through 1964. This kit supplies the main power feed for those systems. This feed will plug directly into your existing wiper harness or motor assembly exactly as the original did. If you require a new wiper harness for your car, they are available from AAW.

Have a Question?

Talk with one of our experts!

Call Us - 1.855.313.9176

American Autowire 510063 Details

So you finally found that perfect Impala project and the mice decided to make a nest out of the wiring. This harness will replace the original plus it uses a modern fuse panel and also includes the plugs for a newer GM style or your '61-'64 column. The dash harness will hook to your stock gauges but you can also unplug it and use aftermarket gauges. It will allow you to rewire your car the way you want without the pain.

Charts

Installation Instructions (PDF)

Instruction guide (PDF)

Guides & Documents

Chassis Wiring Harnesses Instruction Sheet (91051034)

CA Prop 65

American Autowire 510063 Specifications

KEY SPECS
MFG. Part #	510063
Brand	American Autowire
Number of Circuits	18
Fuse Block Included	Yes
Compatible with GM Column	Yes
Ignition Key Location	Dash

GENERAL
Fuse Style	ATO/ATC
Harness Length	Standard
Sold in Quantity	Each
Notes	Contains fuse block, wiring harnesses, and terminals.
