Aluminum X-Series Heim Joint Rod End, 3/4-16 LH, 5/8 Inch Hole
Universal Fit, LH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Aluminum, Anodized
Aluminum rod ends have close tolerance, 3-piece, medium duty design. Hard anodized 7075-T6 aerospace quality aluminum body. Heat treated, 5210 precision ground ball with a Kevlar race. Self lubricating Teflon liner seals out dirt an debris
Applications: Designed for motorsports application where weight is critical. All of the strength & features of the Precision rod ends at half of the weight.
Assebly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

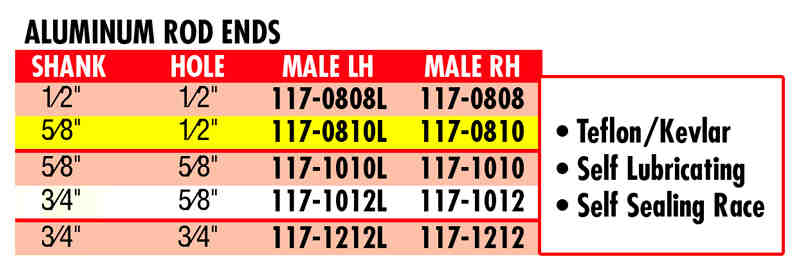

Aluminum Rod End Chart (GIF)
Notice: this color was incorrectly listed in our 2019 #419 race catalog as clear. Actual color is red as shown.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
